Fuel Fired Booster Heater (FFBH) Fuel Pump

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

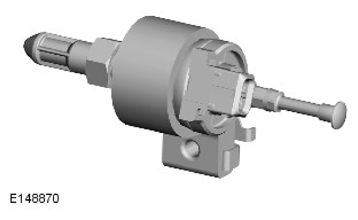

G11310637

The Fuel Fired Booster Heater (FFBH) fuel pump is installed in a rubber mounting. The pump is a self-priming solenoid operated plunger pump. The FFBHCM outputs a Pulse Width Modulation (PWM) signal to control the operation of the pump. When the pump is de-energized, it provides a positive shut-off of the fuel supply to the FFBH.
