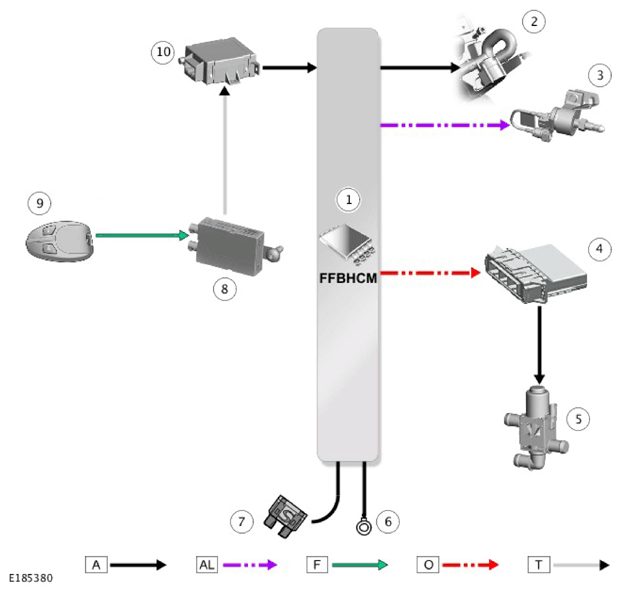

Control Diagram - 2 Of 2 - Remote Control
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED; AL = PULSE WIDTH MODULATION (PWM); F = RADIO FREQUENCY (RF) TRANSMISSION; O = LOCAL INTERCONNECT NETWORK (LIN) BUS, T = CO-AXIAL.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel Fired Booster Heater Control Module (FFBHCM) |
| 2 | Fuel Fired Booster Heater (FFBH) coolant pump |
| 3 | Fuel Fired Booster Heater (FFBH) fuel pump |
| 4 | Automatic Temperature Control Module (ATCM) |
| 5 | Changeover valve |
| 6 | Ground |
| 7 | Power supply |
| 8 | Fuel Fired Booster Heater (FFBH) antenna amplifier |
| 9 | Fuel Fired Booster Heater (FFBH) remote control |
| 10 | Fuel Fired Booster Heater (FFBH) receiver |
