Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Make sure that the wiring harness is not twisted or damaged on removal. Failure to follow this instruction may result in damage to the vehicle.
  • Take extra care not to damage the wiring harness clips.
  • Note the position of the wiring harnesses clips to aid installation.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.

All vehicles

  1. Make the air bag supplemental restraint system (SRS) safe. Refer to: Supplemental Restraint System (SRS) Health and Safety Precautions .
  2. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect .

  3. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  4. Refer to: Thermostatic Expansion Valve .
  5. Refer to: Headliner .
  6. NOTE: This procedure must be carried out on both sides.

    Refer to: B-Pillar Lower Trim Panel .

  7. NOTE: This procedure must be carried out on both sides.

    Refer to: Cowl Side Trim Panel .

  8. NOTE: This procedure must be carried out on both sides.

    Remove the front seat, refer to applicable SEATING procedure.

  9. Refer to: Rear Seat Backrest Cover .
  10. Refer to: Loadspace Scuff Plate Trim Panel .
  11. Refer to: Parcel Shelf .
  12. Refer to: Rear Bumper .
  13. Refer to: Rear Lamp Assembly
  14. Refer to: Luggage Compartment Lid Trim Panel .
  15. NOTE: Repeat the step for the other side.
    G11311558
  16. G11310855
  17. NOTE: If equipped.
    G11310856
  18. NOTE: If equipped.
    G11310861

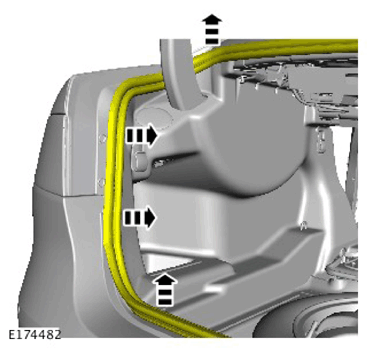

  19. NOTE:
    • Repeat the step for the other side.
    • Left illustration shown, right is similar.
    G11311630

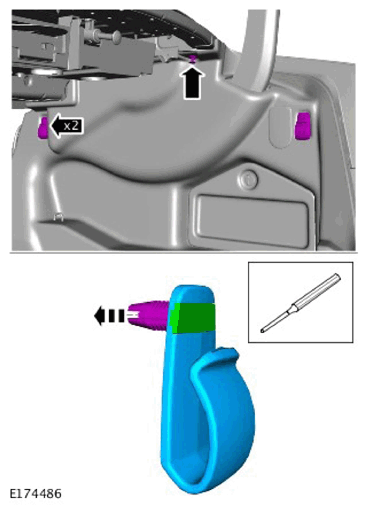

  20. G11311637

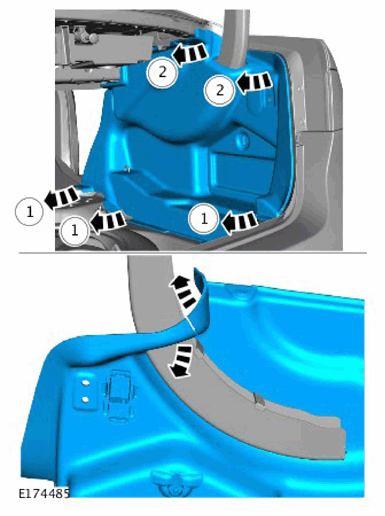

  21. G11311638

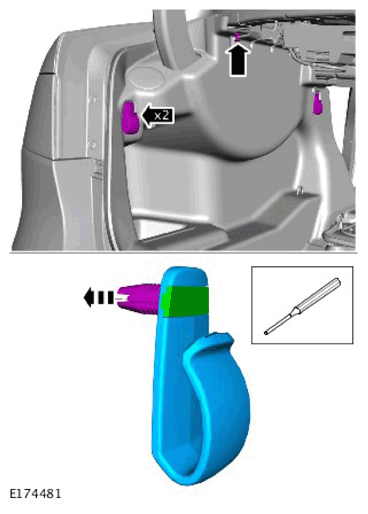

  22. G11311631

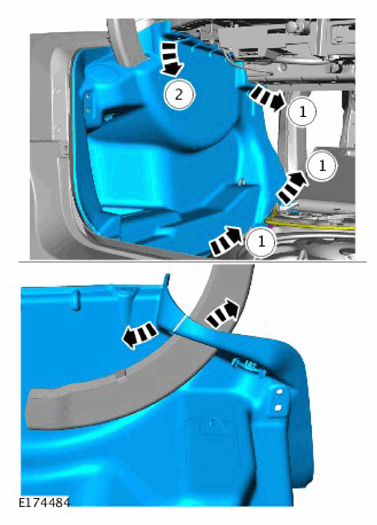

  23. G11311632

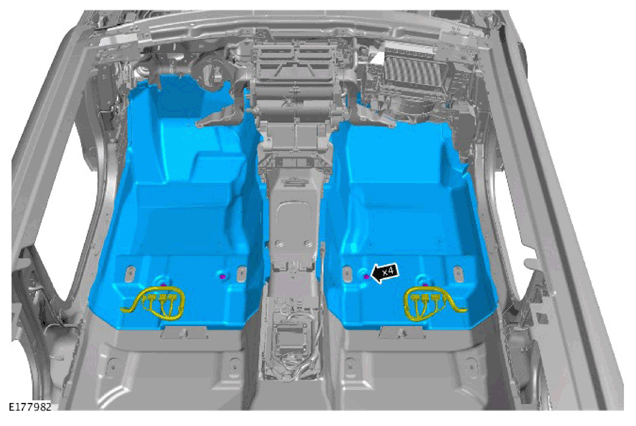

  24. G11311284
  25. NOTE:
    • Repeat the step for the other side.
    • Left illustration shown, right is similar.
    G11312468
  26. NOTE:
    • Repeat the step for the other side.
    • Left illustration shown, right is similar.
    G11312469
  27. NOTE:
    • Repeat the step for the other side.
    • Left illustration shown, right is similar.
    G11312470

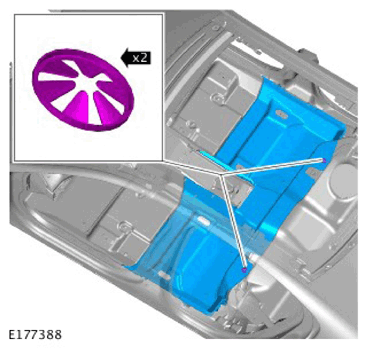

  28. G11311288

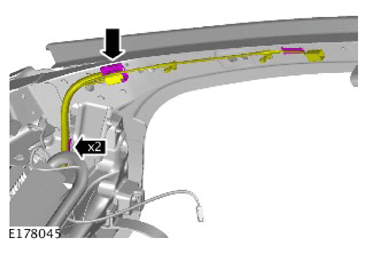

  29. NOTE:
    • Repeat the step for the other side.
    • Right illustration shown, left is similar.
    G11311289
  30. NOTE: Left illustration shown, right is similar.
    G11311538

    Disconnect both front door wiring harnesses.

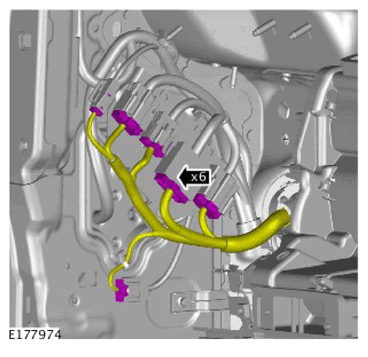

  31. G11311291

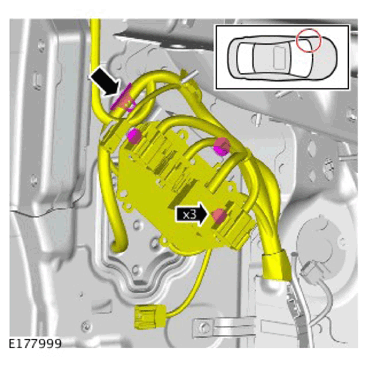

  32. G11311292

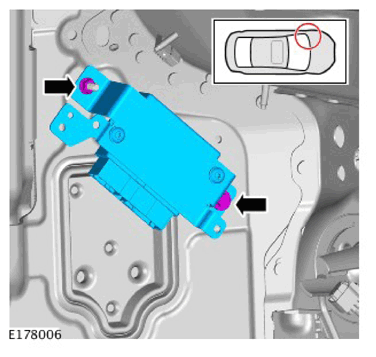

  33. G11311293

    Torque Specification: 10 Nm

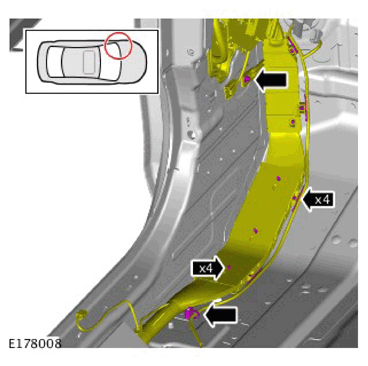

  34. G11311294

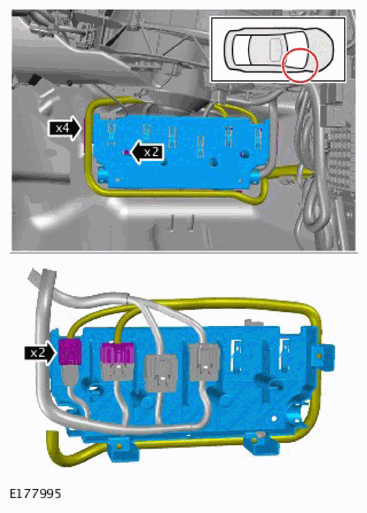

  35. G11311295

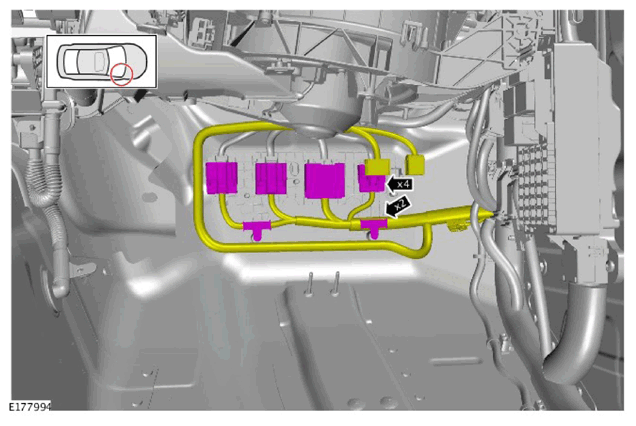

  36. G11311296

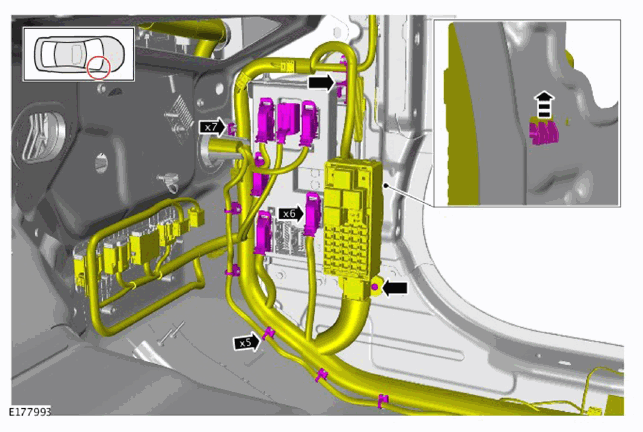

  37. G11311297

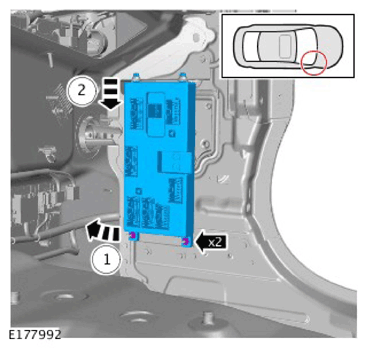

  38. G11311298

    Torque Specification: 10 Nm

  39. NOTE:
    • Repeat the step for the other side.
    • Left illustration shown, right is similar.

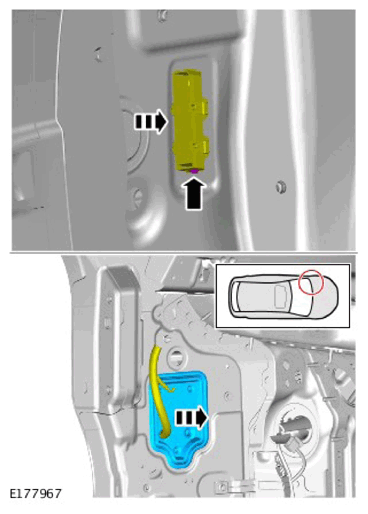

    G11311299
  40. NOTE: Left illustration shown, right is similar.
    G11311538

    Disconnect both rear door wiring harnesses.

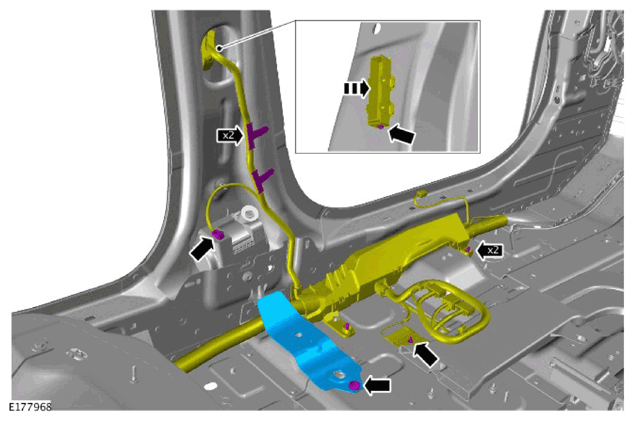

  41. G11311301

    Torque Specification: 10 Nm

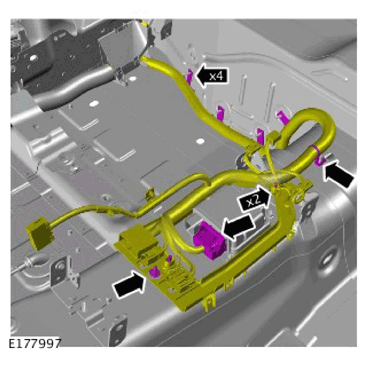

  42. G11311302

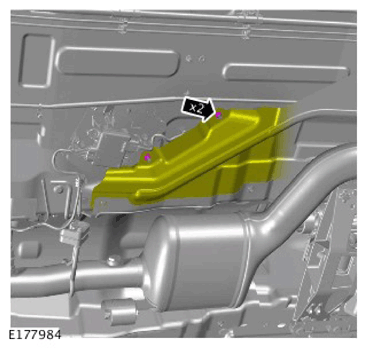

  43. NOTE: If equipped.
    G11311303

    Raise the vehicle.

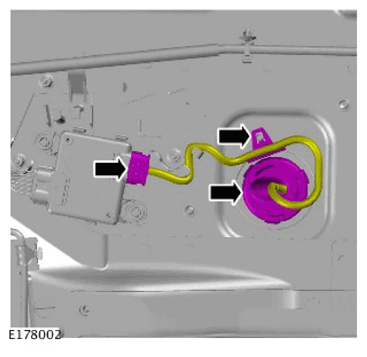

  44. NOTE: If equipped.
    G11311304

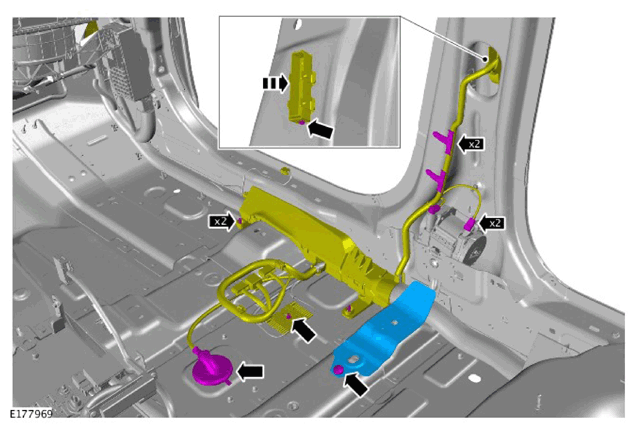

  45. G11311305

    Torque Specification: 10 Nm

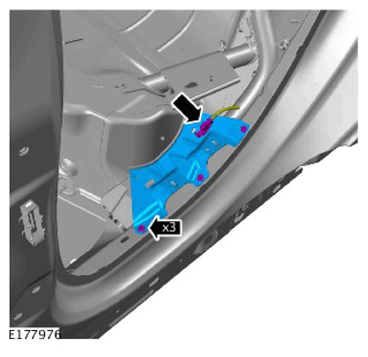

  46. NOTE:
    • Repeat the step for the other side.
    • Left illustration shown, right is similar.
    G11311306

    Torque Specification: 10 Nm

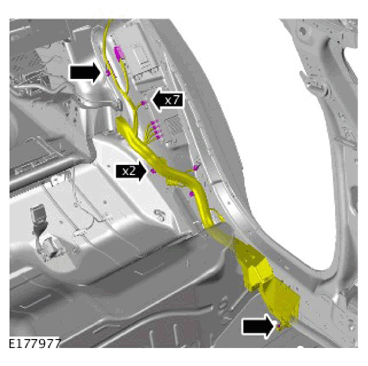

  47. G11311307

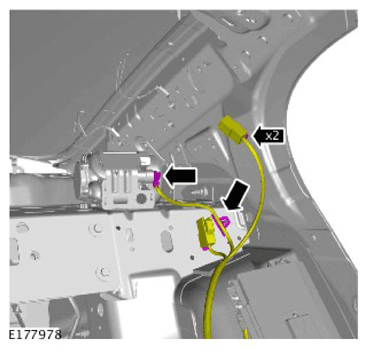

  48. G11311308

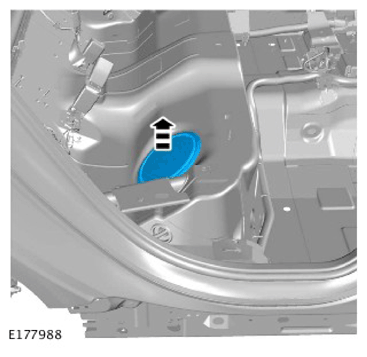

  49. G11311309

    Vehicles with fuel fired heater

  50. Refer to: Fuel Tank (for 2.0L Diesel).

    Refer to: Fuel Tank (for 3.0L V6 Petrol).

    Refer to: Fuel Tank (for 2.0L Petrol).

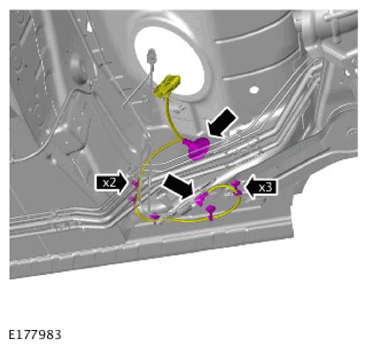

  51. G11311310

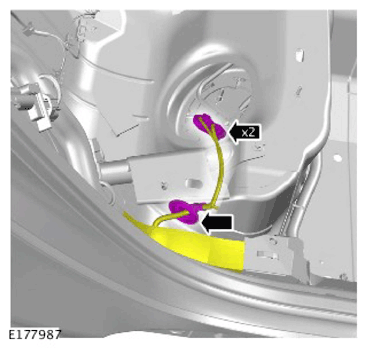

    Vehicles without fuel fired heater

  52. G11311311

    All vehicles

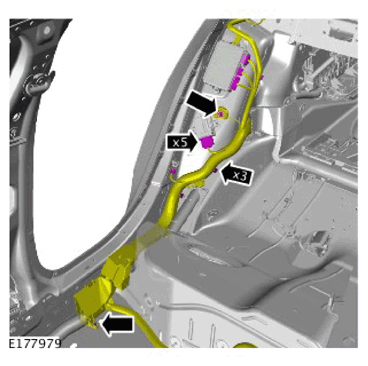

  53. G11311312
  54. G11312489

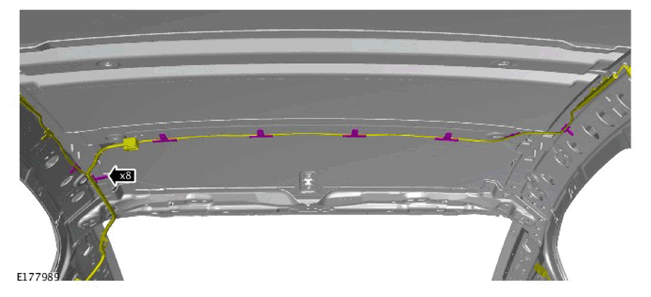

  55. G11311314

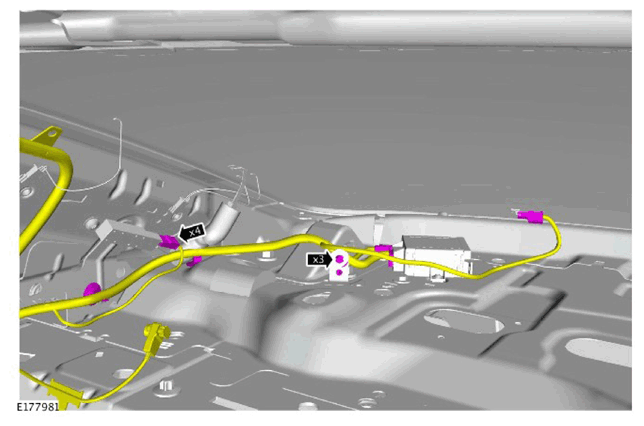

  56. G11311315

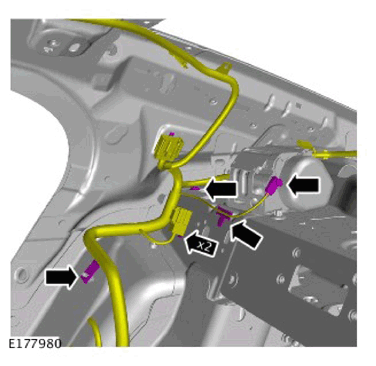

  57. G11311316

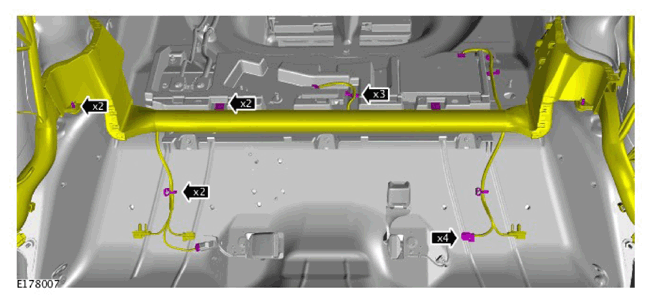

  58. G11311317
  59. Remove the rear wheels and tires.

    Refer to: Wheel and Tire .

  60. NOTE: Repeat the step for the other side.
    G11308081

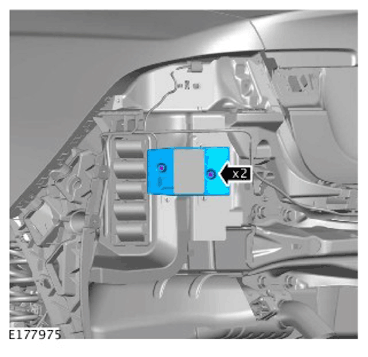

  61. NOTE:
    • Repeat the step for the other side.
    • Left illustration shown, right is similar.
    G11311319

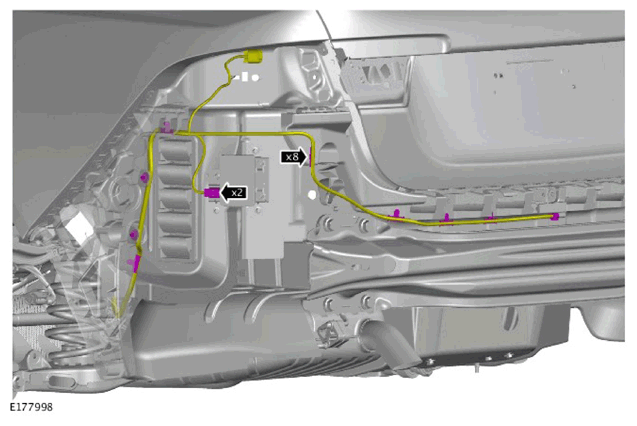

  62. G11311320

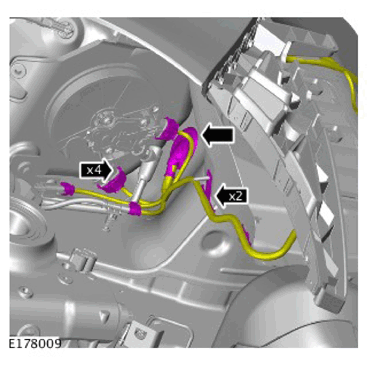

  63. G11311321

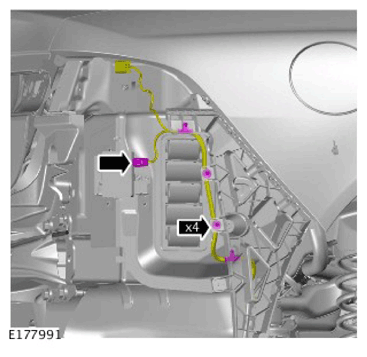

  64. G11311322

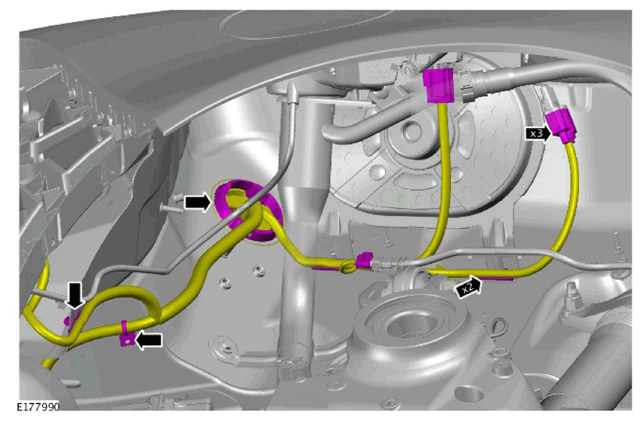

  65. G11311323

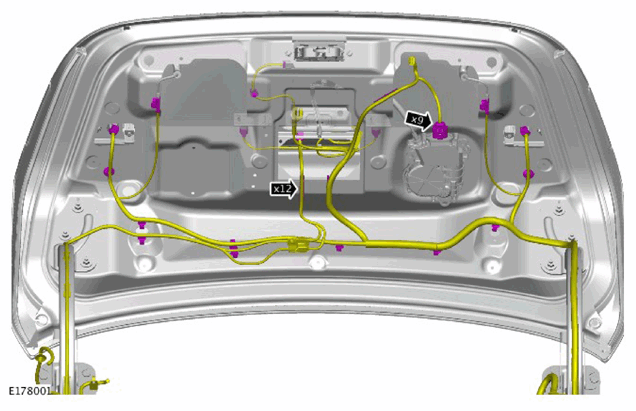

  66. G11311324

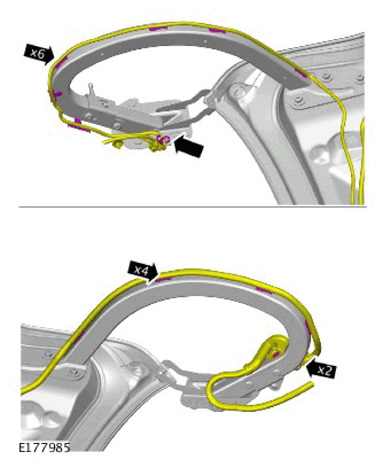

  67. G11311325

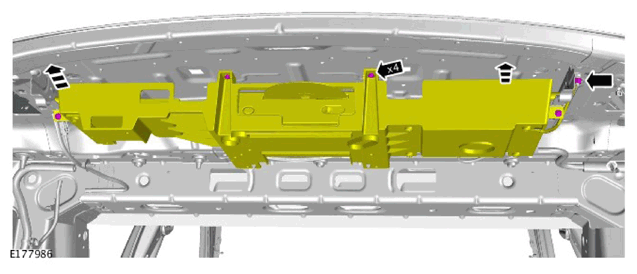

  68. G11311326

    Torque Specification: 10 Nm

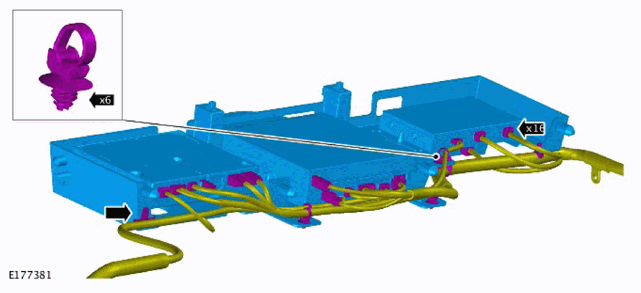

  69. G11311327

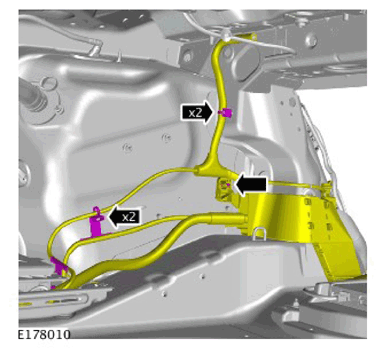

  70. G11311328

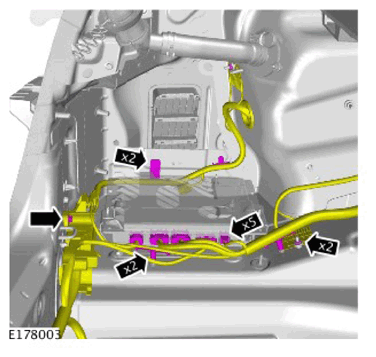

  71. G11311329

    Torque Specification: 10 Nm

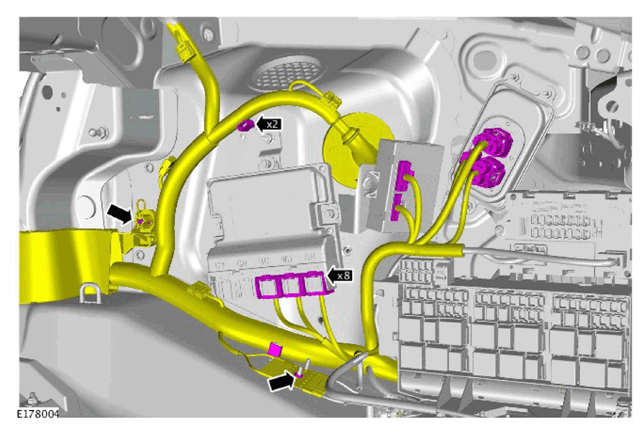

  72. G11311330

    Torque Specification: 10 Nm

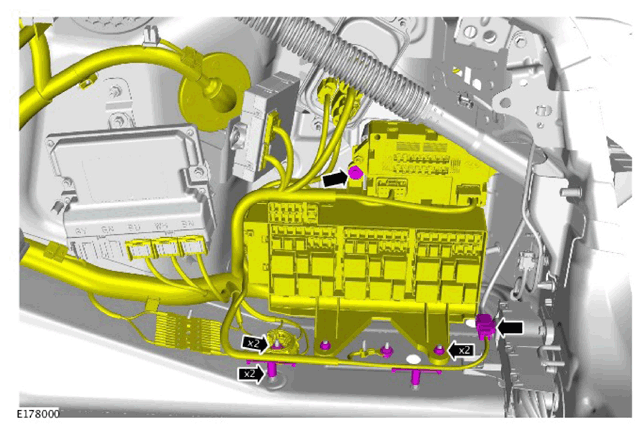

  73. G11311331

    Torque Specification: 10 Nm

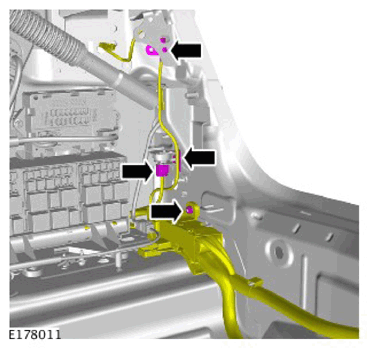

  74. G11311332

    Torque Specification: 10 Nm

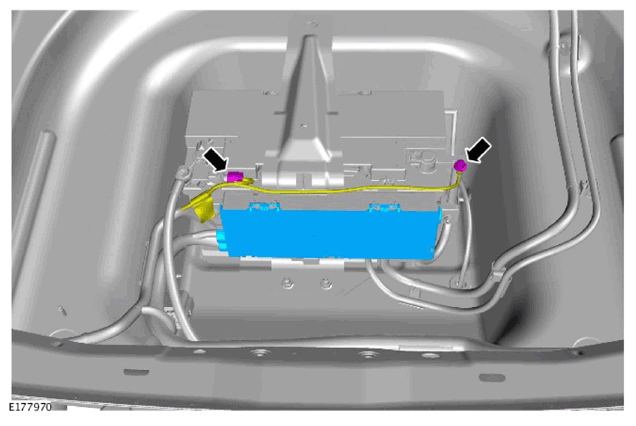

  75. G11311333

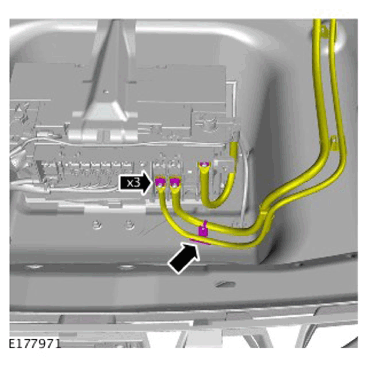

  76. G11311334

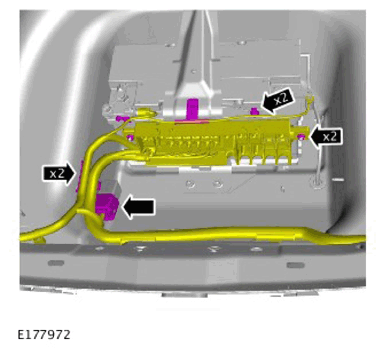

  77. G11311335

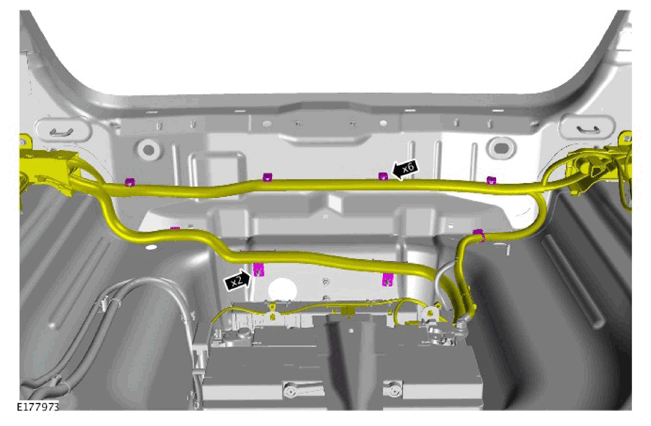

  78. G11311336

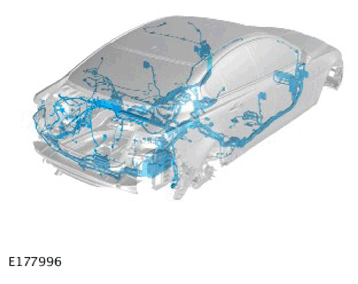

  79. G11311337
