Install the engine wiring harness.
Connect the engine wiring harness.

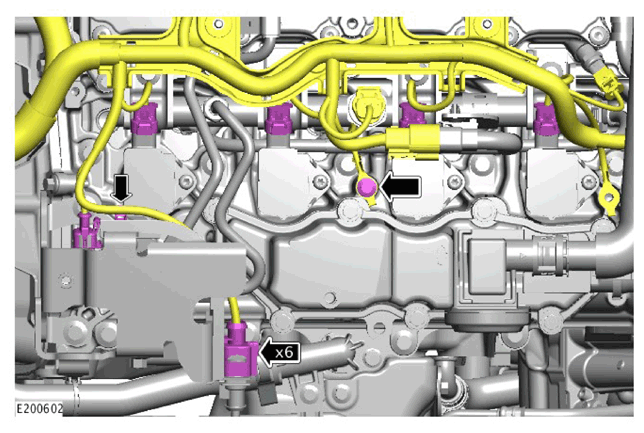

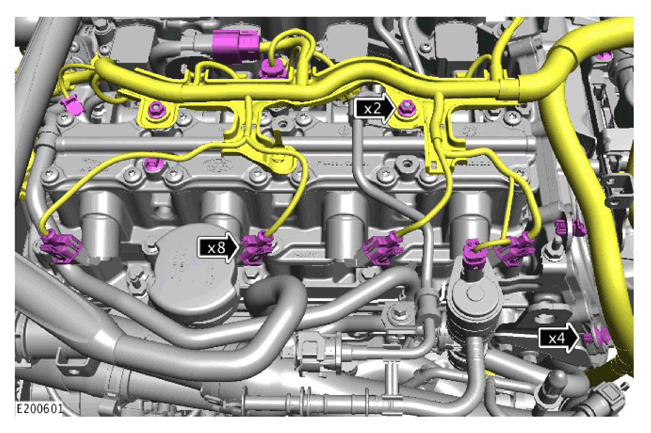

1. Connect the electrical connectors, and install the wiring harness retaining clips.
2. Install the bolt.
Torque Specification: 10 Nm

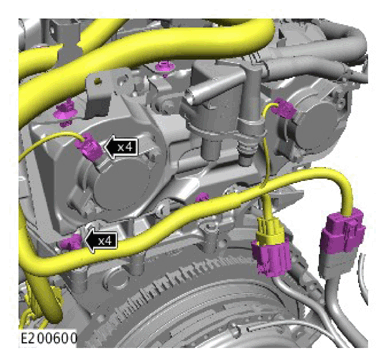

1. Connect the electrical connectors, and Install the wiring harness retaining clips.
2. Install the 2 bolts.
Torque Specification: 10 Nm

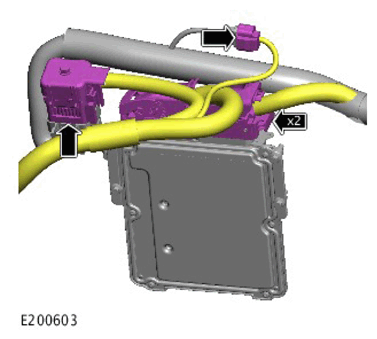

Connect the electrical connectors, and Install the wiring harness retaining clips.

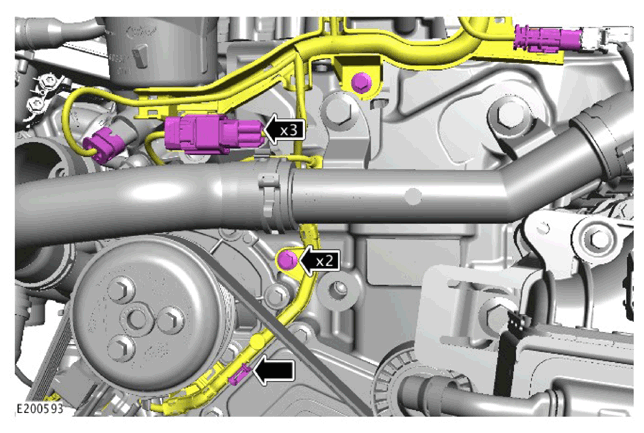

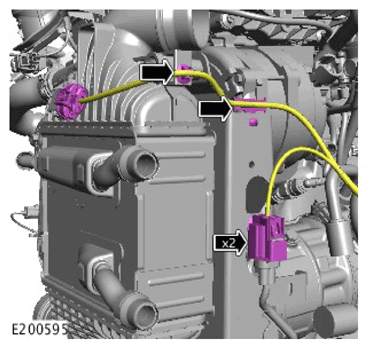

Connect the electrical connector and install the wiring harness retaining clip.

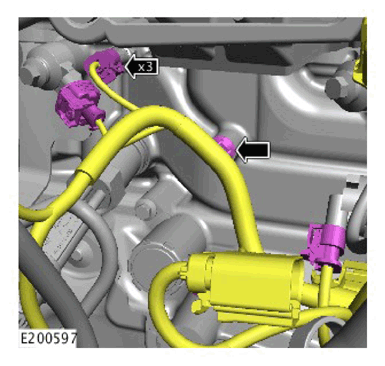

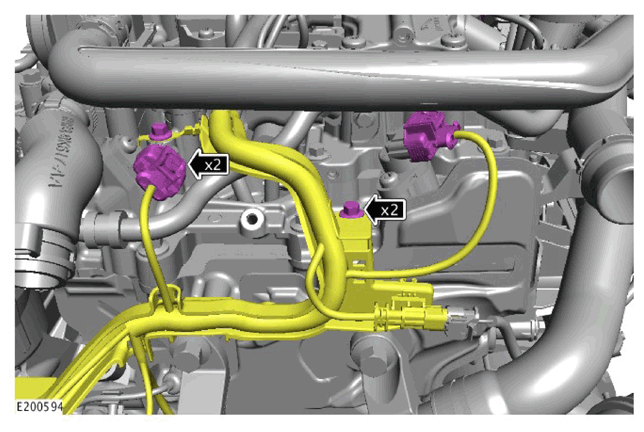

Connect the 3 electrical connectors and install the wiring harness retaining clip.
Connect the 3 electrical connectors and install the wiring harness retaining clip.

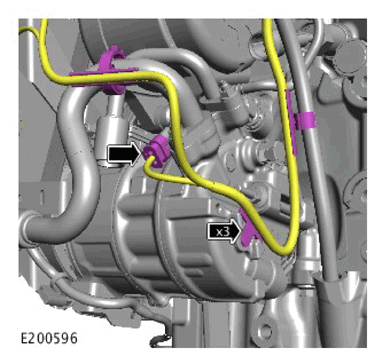

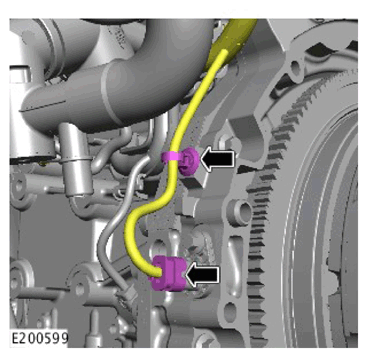

Connect the electrical connector and install the wiring harness retaining clips.

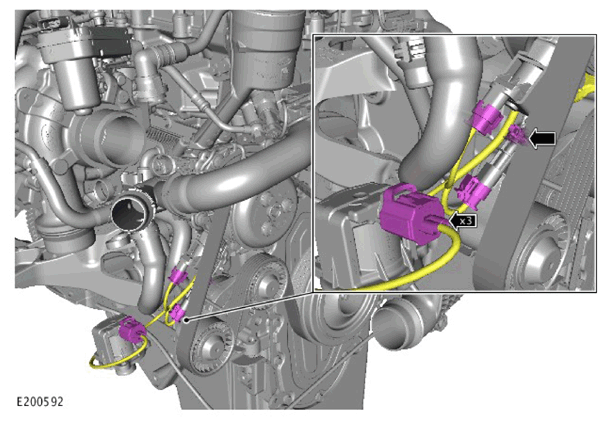

Connect the 2 electrical connectors and install the wiring harness retaining clips.
Connect the 2 electrical connectors and install the 2 bolts.

Torque Specification: 10 Nm

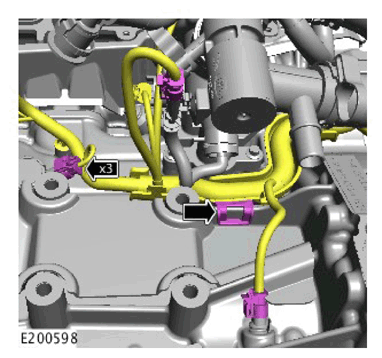

1. Install the wiring harness retaining clip and install the 2 bolts.
  Torque Specification: 10 Nm
2. Connect the 3 electrical connectors.
Connect the 3 electrical connectors and install the wiring harness retaining clip.
Install the intake manifold assembly.
Refer to: Intake Manifold .
Install the intake air resonator.
Refer to: Intake Air Resonator .
Connect the startup battery ground cable.
Refer to: Battery Disconnect and Connect .
