Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Make sure that the wiring harness is not twisted or damaged on removal. Failure to follow this instruction may result in damage to the vehicle.
  • Take extra care not to damage the wiring harness clips.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect .
  2. Refer to: Intake Air Resonator
  3. Refer to: Coolant Expansion Tank .
  4. Refer to: Thermostat .
  5. Refer to: Secondary Bulkhead Panel LH .
  6. G11309336

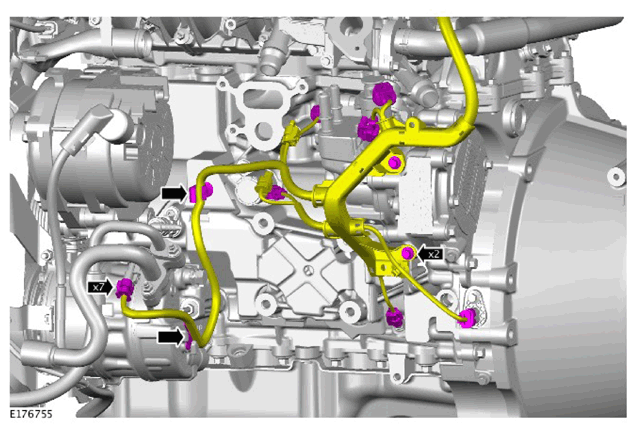

  7. G11311230

    Torque Specification: 10 Nm

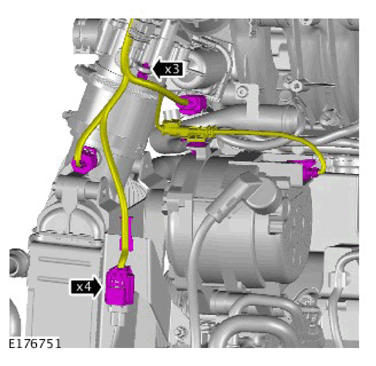

  8. G11311231

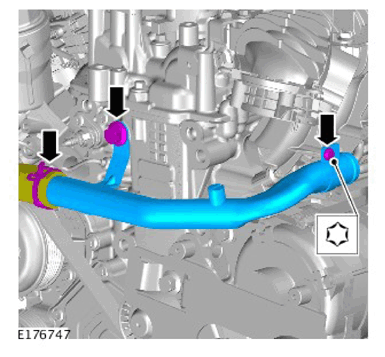

  9. G11311232

    Torque Specifications:

    M8: 25 Nm

    M6: 10 Nm

  10. G11309339
  11. G11309340
  12. G11309341
  13. G11309342
  14. G11309343

    Torque Specification: 10 Nm

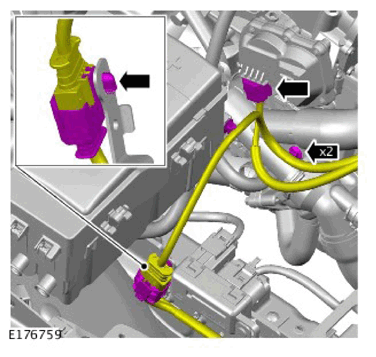

  15. G11311238
  16. Refer to: Secondary Bulkhead Panel LH .
  17. G11309012
  18. G11309011
  19. G11309346
  20. NOTE: Note the position of the wiring harnesses to aid installation.
    G11309347
