Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Left shown, right is similar.
  • The ignition must be switched off.
  1. Refer to: Exterior Mirror Motor (Removal).

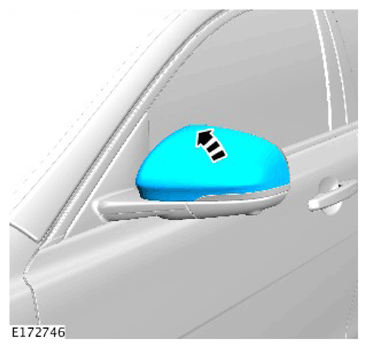

  2. CAUTION: Use a suitable plastic trim tool to release the component.
    NOTE: Note the fitted position of the locating pegs.
    G11310766

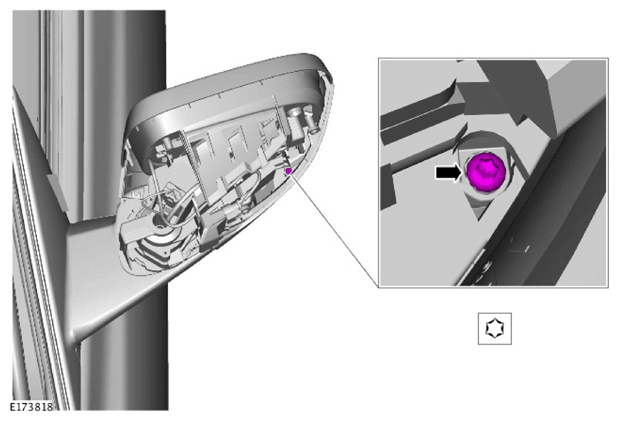

  3. G11310767

    Torque: 0.5 Nm

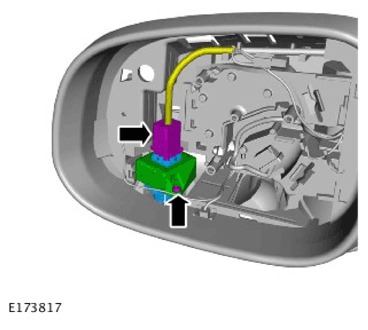

  4. CAUTION: Take extra care not to damage the wiring harness clips.
    G11310768

    Torque: 0.5 Nm
