Section 84 (Parking Aid -- XE (X760))
>>
Parking Aid
>>
Description And Operation
>>
Parking Aid System
>>

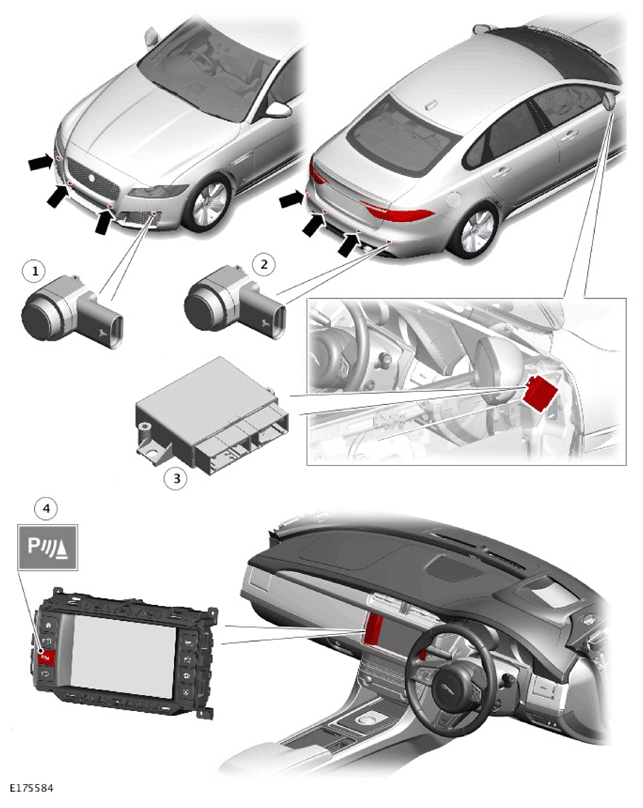

Component Location
Component Location
WARNING:
This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
ITEM
DESCRIPTION
1
Front parking aid sensors (4 of)
2
Rear parking sensors (4 of)
3
Parking Aid Control Module (PACM)
4
Parking aid switch
