Parking Aid Switch
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

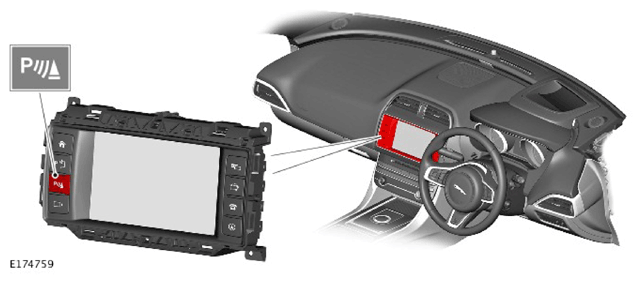

The parking aid switch is located in the left Touch Screen (TS) switchpack.
The parking aid switch is a non-latching push switch, which allows the driver to select the parking aid on or off.
When pressed, the switch momentarily connects to ground to the Parking Aid Control Module (PACM).
The Light Emitting Diode (LED) indicates when the parking aid system is active. The LED is controlled by the PACM.
