Park Assist Switch
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

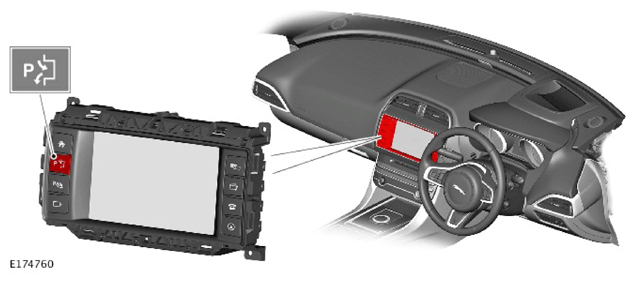

The park assist switch is located in the left Touch Screen (TS) switchpack.
The park assist switch is a non-latching push switch.
Once pressed the park assist switch will turn the system on and parallel parking will be the first available option. Further presses of the switch will scroll the remaining options. The sequence is as follows:
- Parallel parking.
- Perpendicular parking.
- Parking exit.
- Park assist off.
The switch connects a ground to the Parking Aid Control Module (PACM).
The Light Emitting Diode (LED) indicates when the park assist system is active. The LED is controlled by the PACM.
