360° Parking Aid System
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

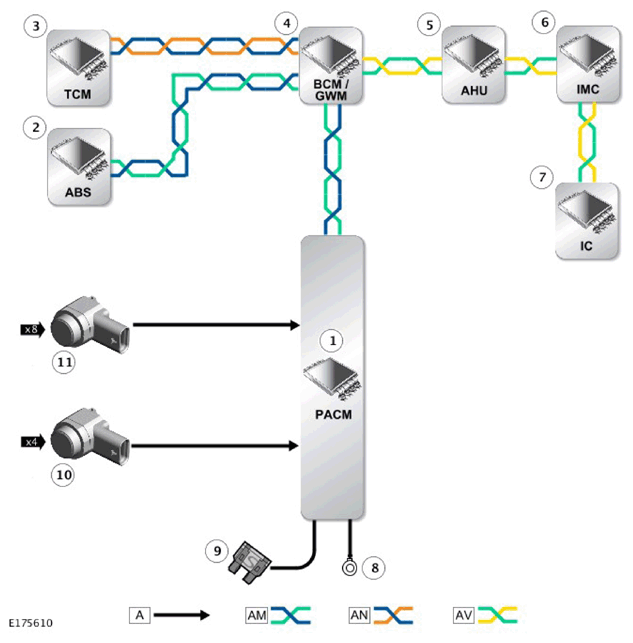

A = HARDWIRED; AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS; AV = HS CAN COMFORT SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Parking Aid Control Module (PACM) |
| 2 | Anti-lock Braking System (ABS) control module |
| 3 | Transmission Control Module (TCM) |
| 4 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 5 | Audio Head Unit (AHU) (only equipped when using InControl™ Touch infotainment system) |
| 6 | Infotainment Master Controller (IMC) (only equipped when using InControl™ Touch Pro infotainment system) |
| 7 | Instrument Cluster (IC) |
| 8 | Ground |
| 9 | Power supply |
| 10 | Park assist sensor (4 of) |
| 11 | Parking aid sensor (8 of) |
