Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • The ignition must be switched off.
  1. Refer to: Rear Seat Bolster .

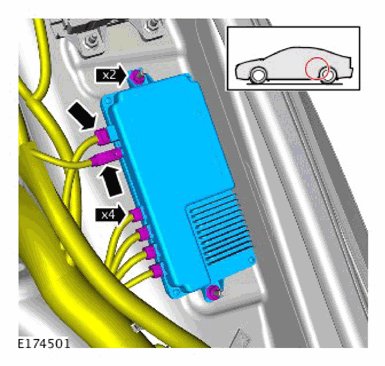

  2. G11310776

    Torque: 9 Nm
