General Procedures: Check

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

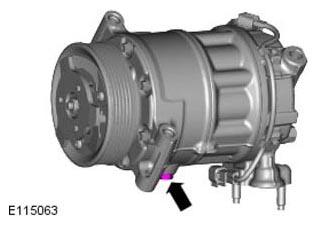

  1. NOTE:
    • This step only needs to be carried out when removing the A/C compressor.
    • Some variation in the illustrations may occur, but the essential information is always correct.
    G11292800

    Torque Specification: 15 Nm

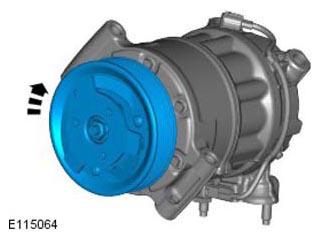

  2. Rotate the A/C compressor shaft at least 6 to 8 turns when draining the refrigerant oil.
    NOTE:
    • This step only needs to be carried out when removing the A/C compressor.
    • Some variation in the illustrations may occur, but the essential information is always correct.
    G11292801
  3. CAUTION:
    • The refrigerant oil top-up quantity must not exceed the refrigerant oil fill quantity.
    • If other A/C components are being renewed in addition to the A/C compressor, there is no need to top up with additional refrigerant oil, apart from filling the compressor.

    Top up with the calculated quantity of new refrigerant oil. Refer to: Specifications .
