Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Some illustrations may show the transmission removed for clarity.

Refer to: Battery Disconnect and Connect (General Procedures).
Refer to: Engine Cover - V6 S/C 3.0L Petrol .
Refer to: Cowl Vent Screen .
- Special Tool(s): 303-1435
- Torque Specification: 25 Nm
Special Tool(s): 303-021
Refer to: Exhaust System (Removal and Installation).
WARNING: Be prepared to collect escaping fluids.
CAUTION:
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
- Remove and discard the O-ring seals.
NOTE: Secure with cable ties.

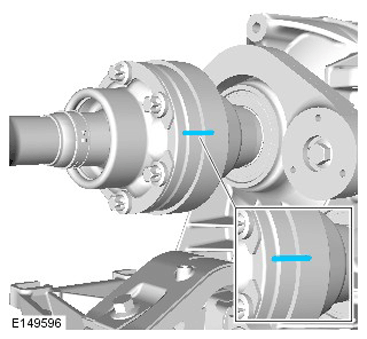

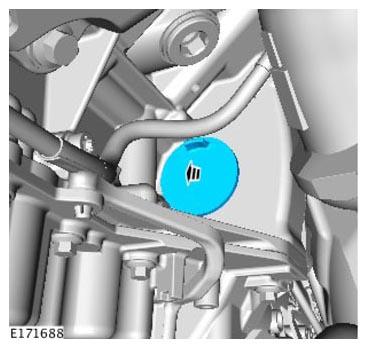

NOTE: Mark the position of the driveshaft on the transmission flange.
CAUTION: Discard the bolts.
CAUTION: Make sure that the driveshaft is supported with suitable retaining straps.
CAUTION:
- Only rotate the crankshaft clockwise.
- Discard the bolts.

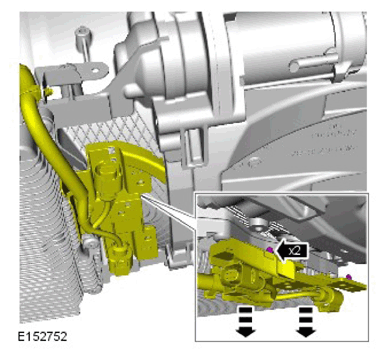

NOTE: Secure with cable ties.
NOTE: Secure with cable ties.
WARNING: Make sure that the transmission is secured with suitable retaining straps.
- Using a suitable stand, support the transmission.
- General Equipment: Transmission jack
WARNING: This step requires the aid of another technician.
CAUTION:
- Care must be taken to avoid damaging the surrounding components.
- Make sure that the torque converter remains in the transmission.
- Secure the torque converter to the transmission using suitable cable ties.
CAUTION: Always plug any open connections to prevent contamination.

NOTE: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE: Do not disassemble further if the component is removed for access only.
