Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
37.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITH DIESEL EXHAUST FLUID 3.5
37.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITHOUT DIESEL EXHAUST FLUID 3.1
37.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER 3.3
G11344346
86.75.50 FRONT SEAT TRACK MOTOR - RENEW ALL DERIVATIVES 1.6
G11423103
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITH DIESEL EXHAUST FLUID, 2WD 6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITH DIESEL EXHAUST FLUID, 4WD 7
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITHOUT DIESEL EXHAUST FLUID, 2WD 5.6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITHOUT DIESEL EXHAUST FLUID, 4WD 6.6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER, 2WD 5.6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER, 4WD 5.9
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM PETROL, 2WD 3.8
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM PETROL, 4WD 3.8
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 3000 CC, AJ V6 (AJ126), 2WD 3.6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 3000 CC, AJ V6 (AJ126), 4WD 4.3
G00564318
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITH DIESEL EXHAUST FLUID 6.3
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITH DIESEL EXHAUST FLUID, 4WD 6.7
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITHOUT DIESEL EXHAUST FLUID, 4WD 6.2
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITHOUT DIESEL EXHAUST FLUID 5.8
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER, 2WD (No Illustration) 6
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM PETROL, 2WD 4.1
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM PETROL, 4WD 4.5
44.20.01 TRANSMISSION ASSEMBLY - RENEW 3000 CC, AJ V6 (AJ126) 3.8
44.20.01 TRANSMISSION ASSEMBLY - RENEW 3000 CC, AJ V6 (AJ126), 4WD 4.5
G11442528

Procedure

CAUTION: New transmission assemblies are supplied pre-filled with transmission fluid.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the transmission removed for clarity.
  1. G11292073
  2. NOTE:
    • Make sure that the torque converter is fully engaged to the transmission.
    • Secure the torque converter to the transmission using suitable cable ties.
    G11291833
  3. G11313875

    Torque Specification: 48 Nm

  4. G11313874

    Torque Specification: 48 Nm

  5. G11298607
  6. NOTE: This step is only required if previously removed.
    G11292003

    Torque Specification: 12 Nm

  7. CAUTION: To prevent water ingress and subsequent transmission damage, make sure that the breather is fully pushed home into the transmission casing. The white line around the circumference of the pipe should not be visible when correctly installed.
    NOTE: Remove and discard the blanking caps.
    G11313871
  8. WARNING:
    • This step requires the aid of another technician.
    • Make sure that the transmission is secured with suitable retaining straps.
    CAUTION:
    • Make sure that the torque converter remains in the transmission.
    • Apply grease of the correct specification to the torque converter spigot.
    NOTE: Remove and discard the cable ties securing the torque converter.
    G11313840
    • General Equipment:  Transmission jack
  9. G11298301

    Torque Specification: 48 Nm

  10. G11298300

    Torque Specification: 48 Nm

  11. G11313798

    Torque Specification: 45 Nm

  12. G11313797

    Remove the transmission jack.

  13. CAUTION:
    • Only rotate the crankshaft clockwise.
    • Make sure that new bolts are installed.
    G11313860

    Torque Specification: 63 Nm

  14. G11313976
  15. CAUTION: Make sure that new bolts are installed.
    NOTE: Make sure that you re-align the driveshaft to the transmission flange using the alignment mark.
    G11284065

    Torque Specification: 75 Nm

  16. G11313865
    • NOTE: Remove and discard the tie straps.
  17. G11298296
  18. G11292138
  19. NOTE: Remove and discard the tie straps.
    G11313862
  20. G11313861

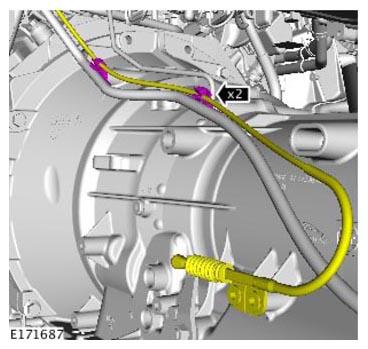

  21. NOTE: Remove and discard the tie straps.
    G11313855
  22. G11284090

    Torque Specification: 11 Nm

  23. WARNING: Be prepared to collect escaping fluids.
    NOTE:
    • Remove and discard the blanking caps.
    • Install new O-ring seals.
    G11291983

    Torque Specification: 22 Nm

  24. G11298284

    Torque Specification: 48 Nm

  25. G11286674
  26. G11286657
  27. Refer to: Exhaust System (V6 S/C 3.0L, Installation).
  28. G11287264

    Special Tool(s):  303-021

  29. G11292027

    Special Tool(s):  303-1435

  30. G11292026

    Torque Specification: 48 Nm

  31. G11313846
  32. Refer to: Cowl Vent Screen (Installation).
  33. Refer to: Engine Cover - V6 S/C 3.0L Petrol (Installation).
  34. Refer to: Battery Disconnect and Connect (General Procedures).
  35. Refer to: Transmission Fluid Level Check .
