Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITH DIESEL EXHAUST FLUID 6.3
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITH DIESEL EXHAUST FLUID, 4WD 6.7
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITHOUT DIESEL EXHAUST FLUID, 4WD 6.2
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITHOUT DIESEL EXHAUST FLUID 5.8
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER, 2WD (No Illustration) 6
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM PETROL, 2WD 4.1
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM PETROL, 4WD 4.5
44.20.01 TRANSMISSION ASSEMBLY - RENEW 3000 CC, AJ V6 (AJ126) 3.8
44.20.01 TRANSMISSION ASSEMBLY - RENEW 3000 CC, AJ V6 (AJ126), 4WD 4.5
G11442528
37.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITH DIESEL EXHAUST FLUID 3.5
37.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITHOUT DIESEL EXHAUST FLUID 3.1
37.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER 3.3
G11344346
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITH DIESEL EXHAUST FLUID, 2WD 6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITH DIESEL EXHAUST FLUID, 4WD 7
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITHOUT DIESEL EXHAUST FLUID, 2WD 5.6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITHOUT DIESEL EXHAUST FLUID, 4WD 6.6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER, 2WD 5.6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER, 4WD 5.9
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM PETROL, 2WD 3.8
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM PETROL, 4WD 3.8
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 3000 CC, AJ V6 (AJ126), 2WD 3.6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 3000 CC, AJ V6 (AJ126), 4WD 4.3
G00564318
86.75.50 FRONT SEAT TRACK MOTOR - RENEW ALL DERIVATIVES 1.6
G11423103

GENERAL EQUIPMENT

EQUIPMENT NAME
Engine support beam
Transmission jack

Procedure

CAUTION: New transmission assemblies are supplied pre-filled with transmission fluid.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect (General Procedures).

  2. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: Lifting .

  3. Remove the engine cover.

    Refer to: Engine Cover - INGENIUM I4 2.0L Petrol .

  4. Remove the cowl vent screen.

    Refer to: Cowl Vent Screen .

  5. G11313876

    Remove the clip.

  6. G11313877

    Using a suitable engine support beam support the engine.

    General Equipment:  Engine support beam

  7. Remove the starter motor.

    Refer to: Starter Motor .

  8. Remove the front driveshaft.

    Refer to: Driveshaft - INGENIUM I4 2.0L Petrol .

  9. G11313879

    Remove the bolt.

  10. CAUTION: Be prepared to collect escaping fluids.
    NOTE: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
    G11313880

    Remove the two bolts and discard the seals.

  11. G11313881

    Remove the 2 bolts and release the emergency park position lever.

  12. G11313882

    Release the clips.

  13. G11313883

    Disconnect the electrical connector and remove the bolt.

  14. G11313885

    Remove the 3 clips.

  15. G11313884

    Disconnect the 2 electrical connectors and release the 3 clips.

  16. G11313886

    Remove the 2 bolts and the bracket.

  17. NOTE: Only turn the engine in the normal direction of rotation.
    G11313887

    Remove and discard the 4 bolts.

  18. WARNING: Make sure that the transmission is secured with suitable retaining straps.
    G11313915

    Using a suitable stand, support the transmission.

    General Equipment:  Transmission jack

  19. NOTE: Note the orientation of the bolts prior to removal.
    G11313889

    Remove the 4 bolts.

  20. G11313890

    Remove the 4 bolts.

  21. G11313891

    Remove the 2 lower bolts.

  22. WARNING: This step requires the aid of another technician.
    CAUTION:
    • Care must be taken to avoid damaging the surrounding components.
    • Make sure that the torque converter remains in the transmission.
    NOTE: Secure the torque converter to the transmission using suitable cable ties.
    G11313919

    Remove the transmission.

  23. NOTE: Do not disassemble further if the component is removed for access only.
    G11313920

    Remove the 2 bolts and the transmission mount.

  24. CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
    G11313894

    Remove the Transmission breather pipe.

  25. G11313895

    Remove the 3 bolts and the exhaust bracket.

  26. G11313896

    Remove the 2 bolts and the heat shield.

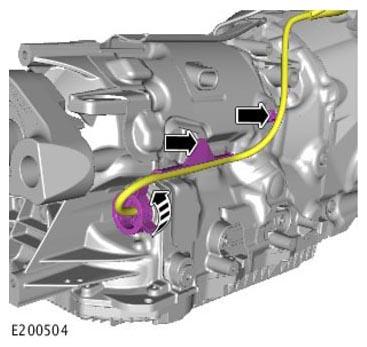

  27. G11313924

    Disconnect the electrical connector and release the 2 clips.

  28. G11313925

    Remove the transmission wiring harness.

  29. G11313901

    Remove the transmission covers.

  30. G11313902

    Remove the nut and the selector lever.

  31. G11313903

    Remove the transmission plug.

  32. G11313929

    Remove the 2 bolts and the mount.
