Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITH DIESEL EXHAUST FLUID 6.3
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITH DIESEL EXHAUST FLUID, 4WD 6.7
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITHOUT DIESEL EXHAUST FLUID, 4WD 6.2
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITHOUT DIESEL EXHAUST FLUID 5.8
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER, 2WD (No Illustration) 6
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM PETROL, 2WD 4.1
44.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM PETROL, 4WD 4.5
44.20.01 TRANSMISSION ASSEMBLY - RENEW 3000 CC, AJ V6 (AJ126) 3.8
44.20.01 TRANSMISSION ASSEMBLY - RENEW 3000 CC, AJ V6 (AJ126), 4WD 4.5
G11442528
37.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITH DIESEL EXHAUST FLUID 3.5
37.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITHOUT DIESEL EXHAUST FLUID 3.1
37.20.01 TRANSMISSION ASSEMBLY - RENEW 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER 3.3
G11344346
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITH DIESEL EXHAUST FLUID, 2WD 6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITH DIESEL EXHAUST FLUID, 4WD 7
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITHOUT DIESEL EXHAUST FLUID, 2WD 5.6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITHOUT DIESEL EXHAUST FLUID, 4WD 6.6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER, 2WD 5.6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER, 4WD 5.9
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM PETROL, 2WD 3.8
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 2000 CC, INGENIUM PETROL, 4WD 3.8
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 3000 CC, AJ V6 (AJ126), 2WD 3.6
44.20.01.90 TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL 3000 CC, AJ V6 (AJ126), 4WD 4.3
G00564318
86.75.50 FRONT SEAT TRACK MOTOR - RENEW ALL DERIVATIVES 1.6
G11423103

General Equipment

EQUIPMENT NAME
Engine support beam
Transmission jack

Procedure

CAUTION:
  • Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
  • New transmission assemblies are supplied pre-filled with transmission fluid.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect (General Procedures).

  2. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: Lifting .

  3. Remove the engine cover.

    Refer to: Engine Cover - INGENIUM I4 2.0L Petrol .

  4. Remove the cowl panel.

    Refer to: Cowl Vent Screen .

  5. G11313876

    Disconnect the breather.

  6. G11313877

    Using a suitable engine support beam support the engine.

    General Equipment:  Engine support beam

  7. G11313878

    Disconnect the breather.

  8. Remove the front driveshaft.

    Refer to: Front Driveshaft - AWD .

  9. Remove the starter motor.

    Refer to: Starter Motor .

  10. Remove the driveshaft.

    Refer to: Driveshaft - INGENIUM I4 2.0L Petrol .

  11. G11313879

    Disconnect the transmission fluid cooler pipes support bracket.

  12. CAUTION: Be prepared to collect escaping fluids.
    G11313880

    Disconnect the transmission fluid cooler pipes and discard the O-ring seals.

  13. G11313881

    Disconnect the Emergency Park Release (EPR) lever.

  14. G11313882

    Release the EPR cable from the clips.

  15. G11313883

    Disconnect the solenoid electrical connector and remove the retaining bolt.

  16. G11313884
    1. Disconnect the 2 transmission wiring harness electrical connectors.
    1. Release the transmission wiring harness from the 3 clips.
  17. G11313885

    Release the transmission wiring harness from the 3 clips.

  18. G11313886

    Remove the wiring harness bracket.

  19. NOTE: Only turn the engine in the normal direction of rotation.
    G11313887

    Remove and discard the 4 flexplate bolts.

  20. WARNING: Make sure that the transmission is secured with suitable retaining straps.
    G11313888
    • Using a suitable stand, support the transmission.

      General Equipment:  Transmission jack

    • Remove the 5 transmission support bolts.
  21. NOTE: Note the orientation of the bolts prior to removal.
    G11313889

    Remove the 4 left side transmission to engine bolts.

  22. G11313890

    Remove the 4 right side transmission to engine bolts.

  23. G11313891

    Remove the 2 lower transmission to engine bolts.

  24. WARNING: This step requires the aid of another technician.
    CAUTION:
    • Care must be taken to avoid damaging the surrounding components.
    • Make sure that the torque converter remains in the transmission.
    NOTE: Secure the torque converter to the transmission using suitable cable ties.
    G11313892

    Remove the transmission.

  25. NOTE: Do not disassemble further if the component is removed for access only.
    G11313893

    Remove the transmission support insulator.

    Refer to TRANSMISSION SUPPORT INSULATOR (G1818209)  (Removal and Installation).

  26. G11313894

    Remove the breather.

  27. G11313895

    Remove the exhaust mount from the transmission.

  28. G11313896

    Remove the transmission heat shield.

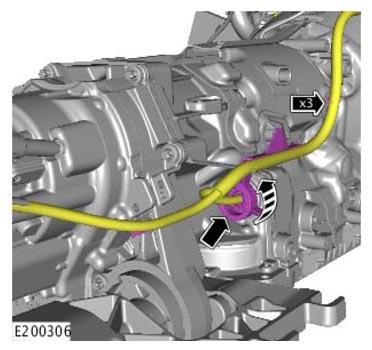

  29. G11313897

    Disconnect the transmission electrical connector and release the 3 clips.

  30. G11313898

    Disconnect the electrical connector and remove the 2 clips.

  31. G11313899

    Remove the transmission wiring harness.

  32. WARNING: This requires the aid of another technician.
    NOTE: Note the orientation of the component prior to removal.
    G11313900

    Remove the transfer case.

  33. G11313901

    Remove the transmission Noise, Vibration and Harshness (NVH) material.

  34. G11313902

    Remove the EPR lever.

  35. G11313903

    Remove the transmission cap.
