Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the transmission removed for clarity.
  1. Refer to: Engine Cover - INGENIUM I4 2.0L Diesel .
  2. Refer to: Cowl Vent Screen .
  3. G11313815
  4. G11313816
  5. G11313817
  6. G11313818
  7. NOTE: Only fit the component illustrated of special tool JLR-303-1633.
    G11309306

    Special Tool(s):  303-021, JLR-303-1633

  8. Refer to: Starter Motor (Removal and Installation).
  9. Refer to: Exhaust System - Vehicles With: Diesel Exhaust Fluid (Removal and Installation).

    Refer to: Exhaust System - Vehicles Without: Diesel Exhaust Fluid (Removal and Installation).

  10. CAUTION: Note the installed position of the component prior to removal.
    G11313820
  11. G11313821
  12. CAUTION:
    • Be prepared to collect escaping fluids.
    • Remove and discard the O-ring seals.
    G11313822
  13. G11313752
  14. G11313824
    • NOTE: Secure with cable ties.

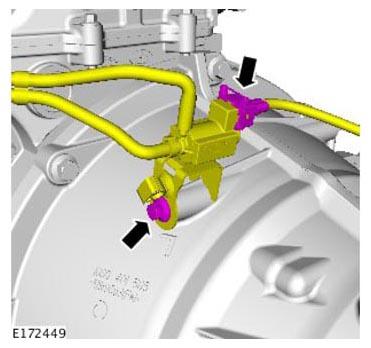

  15. G11313825
    • NOTE: Secure with cable ties.
  16. G11313826
    • NOTE: Secure with cable ties.
  17. CAUTION:
    • Always plug any open connections to prevent contamination.
    • Discard the component.
    G11313827
  18. NOTE: Note the orientation of the component prior to removal.

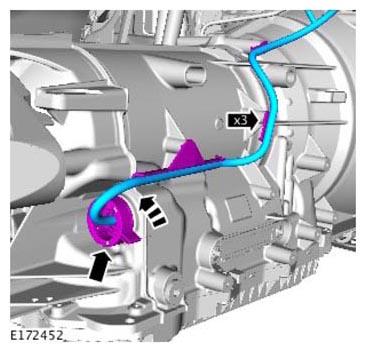

    G11313828
  19. CAUTION: Discard the bolts.
    NOTE: Only turn the engine in the normal direction of rotation.
    G11313829
  20. CAUTION: Care must be taken not to damage the component.
    NOTE: Secure with cable ties.
    G11284094

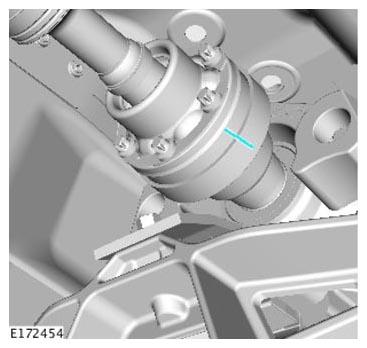

  21. NOTE: Mark the position of the driveshaft on the transmission flange.
    G11313754

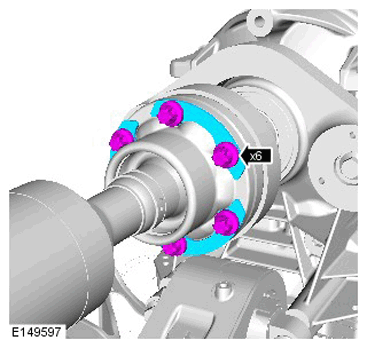

  22. CAUTION: Discard the bolts.
    G11284048
  23. CAUTION: Make sure that the driveshaft is supported with suitable retaining straps.
    G11284053
  24. G11292093
    • NOTE: Remove the cable tie.
  25. WARNING: Make sure that the transmission is secured with suitable retaining straps.
    G11313797

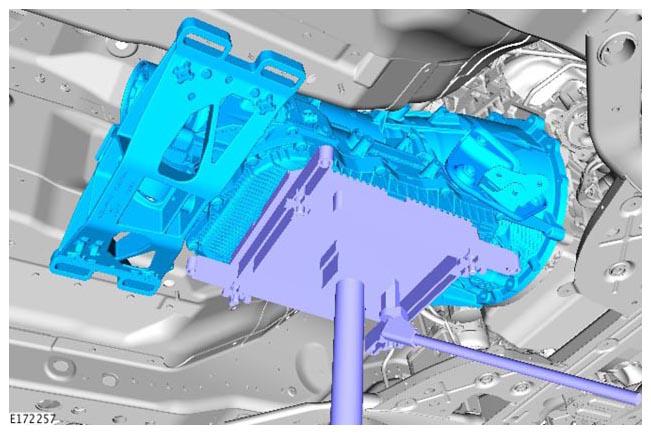

    • Using a suitable stand, support the transmission.
    • General Equipment:  Transmission jack
  26. G11313798
  27. G11313837
  28. G11313838
  29. G11313839
  30. WARNING: This step requires the aid of another technician.
    CAUTION:
    • Care must be taken to avoid damaging the surrounding components.
    • Make sure that the torque converter remains in the transmission.
    NOTE: Secure the torque converter to the transmission using suitable cable ties.
    G11313840

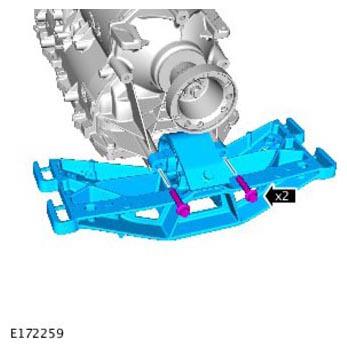

  31. G11313799
  32. G11313842
  33. G11298607
