Removal And Installation: Installation
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| 37.20.01 | TRANSMISSION ASSEMBLY - RENEW | 2000 CC, INGENIUM DIESEL, WITH DIESEL EXHAUST FLUID | 3.5 |
| 37.20.01 | TRANSMISSION ASSEMBLY - RENEW | 2000 CC, INGENIUM DIESEL, WITHOUT DIESEL EXHAUST FLUID | 3.1 |
| 37.20.01 | TRANSMISSION ASSEMBLY - RENEW | 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER | 3.3 |
| 86.75.50 | FRONT SEAT TRACK MOTOR - RENEW | ALL DERIVATIVES | 1.6 |
| 44.20.01.90 | TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL | 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITH DIESEL EXHAUST FLUID, 2WD | 6 |
| 44.20.01.90 | TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL | 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITH DIESEL EXHAUST FLUID, 4WD | 7 |
| 44.20.01.90 | TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL | 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITHOUT DIESEL EXHAUST FLUID, 2WD | 5.6 |
| 44.20.01.90 | TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL | 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITHOUT DIESEL EXHAUST FLUID, 4WD | 6.6 |
| 44.20.01.90 | TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL | 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER, 2WD | 5.6 |
| 44.20.01.90 | TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL | 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER, 4WD | 5.9 |
| 44.20.01.90 | TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL | 2000 CC, INGENIUM PETROL, 2WD | 3.8 |
| 44.20.01.90 | TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL | 2000 CC, INGENIUM PETROL, 4WD | 3.8 |
| 44.20.01.90 | TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL | 3000 CC, AJ V6 (AJ126), 2WD | 3.6 |
| 44.20.01.90 | TRANSMISSION ASSEMBLY - REMOVE FOR ACCESS, AND INSTALL | 3000 CC, AJ V6 (AJ126), 4WD | 4.3 |
| 44.20.01 | TRANSMISSION ASSEMBLY - RENEW | 2000 CC, INGENIUM DIESEL, WITH DIESEL EXHAUST FLUID | 6.3 |
| 44.20.01 | TRANSMISSION ASSEMBLY - RENEW | 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITH DIESEL EXHAUST FLUID, 4WD | 6.7 |
| 44.20.01 | TRANSMISSION ASSEMBLY - RENEW | 2000 CC, INGENIUM DIESEL, WITH PARTICULATE FILTER, WITHOUT DIESEL EXHAUST FLUID, 4WD | 6.2 |
| 44.20.01 | TRANSMISSION ASSEMBLY - RENEW | 2000 CC, INGENIUM DIESEL, WITHOUT DIESEL EXHAUST FLUID | 5.8 |
| 44.20.01 | TRANSMISSION ASSEMBLY - RENEW | 2000 CC, INGENIUM DIESEL, WITHOUT PARTICULATE FILTER, 2WD (No Illustration) | 6 |
| 44.20.01 | TRANSMISSION ASSEMBLY - RENEW | 2000 CC, INGENIUM PETROL, 2WD | 4.1 |
| 44.20.01 | TRANSMISSION ASSEMBLY - RENEW | 2000 CC, INGENIUM PETROL, 4WD | 4.5 |
| 44.20.01 | TRANSMISSION ASSEMBLY - RENEW | 3000 CC, AJ V6 (AJ126) | 3.8 |
| 44.20.01 | TRANSMISSION ASSEMBLY - RENEW | 3000 CC, AJ V6 (AJ126), 4WD | 4.5 |
Procedure
CAUTION:
New transmission assemblies are supplied pre-filled with transmission fluid.
NOTE:
- Some variation in the illustrations may occur, but the essential information is always correct.
- Some illustrations may show the transmission removed for clarity.
-
NOTE: Make sure that the torque converter is fully engaged to the transmission.
Torque Specification: 12 Nm
Torque Specification: 48 Nm
-
WARNING: This step requires the aid of another technician.CAUTION:
- Care must be taken to avoid damaging the surrounding components.
- Make sure that the torque converter remains in the transmission.
NOTE: Remove and discard the cable ties securing the torque converter. Torque Specification: 48 Nm
Torque Specification: 48 Nm
Torque Specification: 48 Nm
Torque Specification: 45 Nm
Remove the jack supporting the transmission.
-
CAUTION: Care must be taken not to damage the component.NOTE: Secure with a cable tie.
-
CAUTION: Make sure that new bolts are installed.NOTE: Make sure that you re-align the driveshaft to the transmission flange using the alignment mark.
Torque Specification: 75 Nm
-
NOTE: Remove and discard the cable tie.
-
-
CAUTION: Make sure that new bolts are installed.NOTE: Only turn the engine in the normal direction of rotation.
Torque Specification: 63 Nm
-

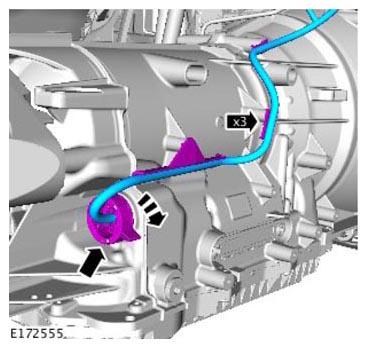

CAUTION:
- Make sure that a new component is installed.
- To prevent water ingress and subsequent transmission damage, make sure that the breather is fully pushed home into the transmission casing. The white line around the circumference of the pipe should not be visible when correctly installed.
NOTE: Remove and discard the blanking caps. -
NOTE: Remove and discard the cable ties.
Torque Specification: 12 Nm
-
-
NOTE: Remove and discard the cable ties.
Torque Specification: 12 Nm
-
-
NOTE: Remove and discard the cable ties.
-
Torque Specification: 11 Nm
-
NOTE: Install new O-ring seals.
Torque Specification: 22 Nm
Torque Specification: 22 Nm
-
NOTE: Make sure that these components are installed to the noted removal position.
Torque Specification: 7 Nm
- Refer to: Exhaust System - Vehicles With: Diesel Exhaust Fluid
(Removal and Installation).
Refer to: Exhaust System - Vehicles Without: Diesel Exhaust Fluid (Removal and Installation).
- Refer to: Starter Motor (Removal and Installation).
-
NOTE: Only fit the component illustrated of special tool JLR-303-1633.
Special Tool(s): 303-021, JLR-303-1633
Torque Specifications:
Bracket Bolts 30 Nm
Exhaust clamp 25 Nm
Torque Specification: 26 Nm
Torque Specification: 48 Nm
- Refer to: Cowl Vent Screen (Installation).
- Refer to: Engine Cover - INGENIUM I4 2.0L Diesel (Installation).
- Refer to: Transmission Fluid Level Check (General Procedures).
