Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Draining, refer to:
- For 2.0L Petrol, refer to: Cooling System Partial Draining And Vacuum Filling (General Procedures).
- For 2.0L Diesel, refer to: Cooling System Draining and Vacuum Filling (General Procedures).
- For V6 S/C 3.0L Petrol, refer to: Cooling System Draining and Vacuum Filling (General Procedures).
Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging (General Procedures).

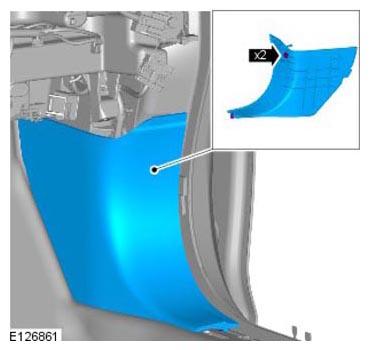

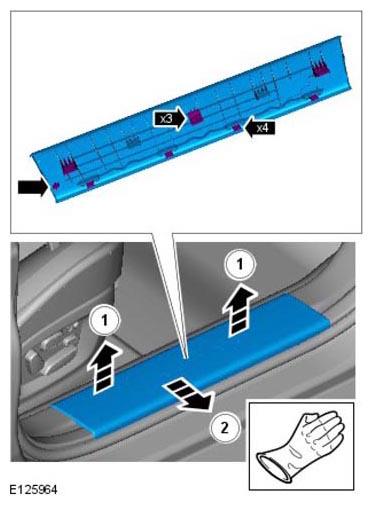

Repeat the above procedure for the other side. Refer to: Front Row Seat (Removal and Installation).
Refer to: Instrument Panel Console (Removal and Installation).

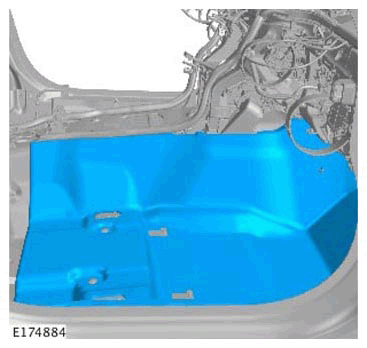

Secondary bulkhead right panel, refer to:
- For 2.0L Petrol, refer to: Secondary Bulkhead Right Panel - Ingenium I4 2.0L Petrol (Removal and Installation).
- For 2.0L Diesel, refer to: Secondary Bulkhead Right Panel - Ingenium I4 2.0L Diesel (Removal and Installation).
- For V6 S/C 3.0L Petrol, refer to: Secondary Bulkhead Right Panel - V6 S/C 3.0L Petrol (Removal and Installation).

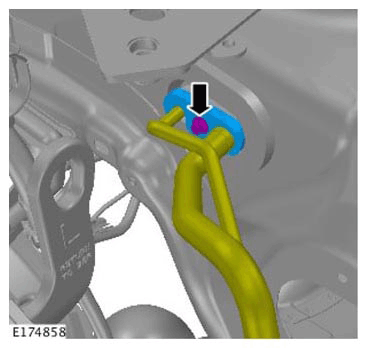

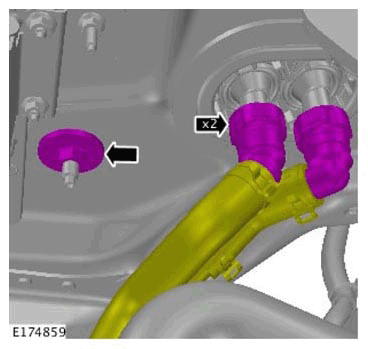

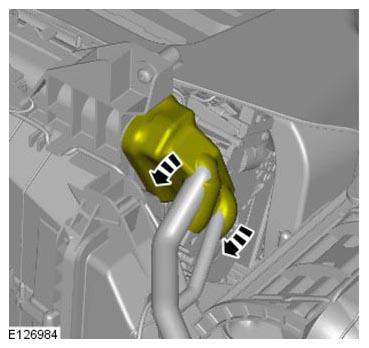

CAUTION: Be prepared to collect escaping coolant.

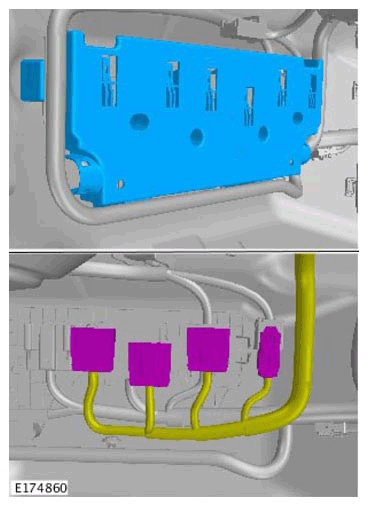

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

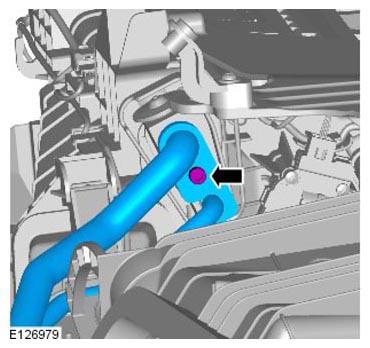

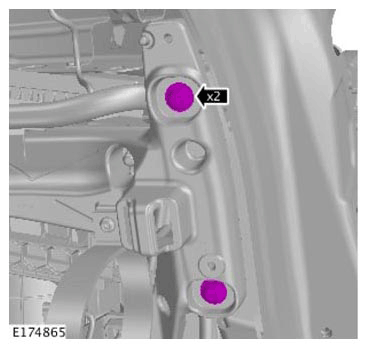

Torque Specification: 9 Nm
CAUTION: Make sure that the component is correctly located on the locating dowels.

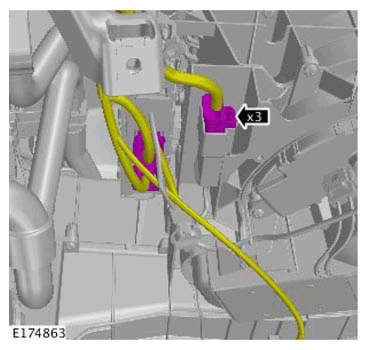

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

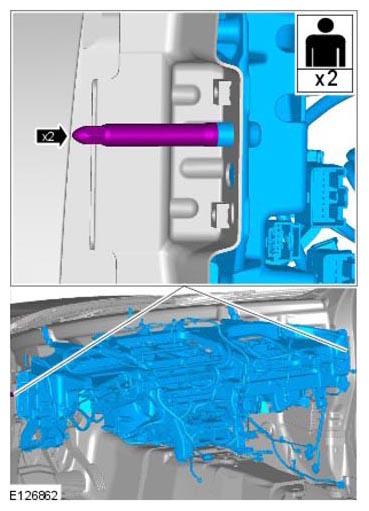

Repeat the above procedure for the other side.

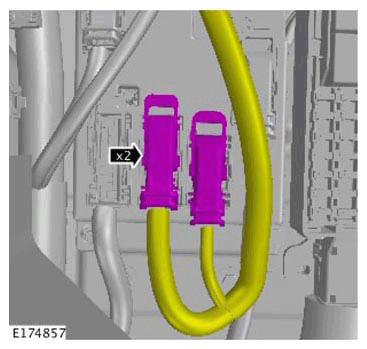

- Repeat for both sides.
Torque Specification: 1.5 Nm
Torque Specification: 1.5 Nm

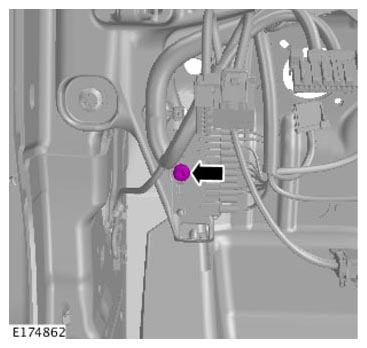

Torque Specification: 9 Nm

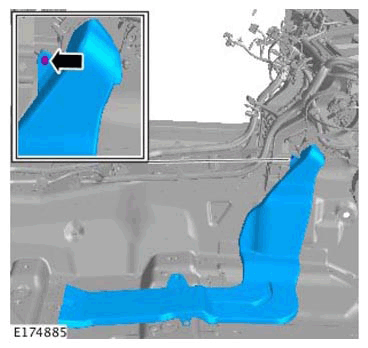

NOTE: Take extra care when removing the clips.

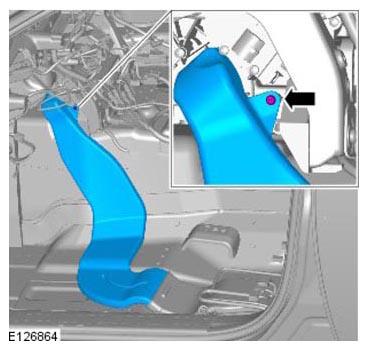

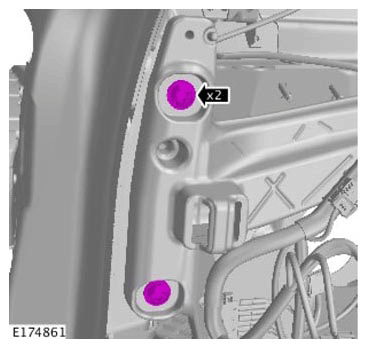

Repeat the above procedure for the other side.
Repeat the above procedure for the other side.

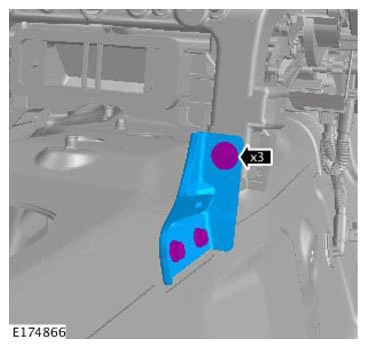

Torque Specification: 9 Nm
Torque Specification: 9 Nm
Torque Specification: 9 Nm
CAUTION: Take extra care not to damage the clips or screw threads. Failure to follow this instruction may result in damage to the climate control assembly.

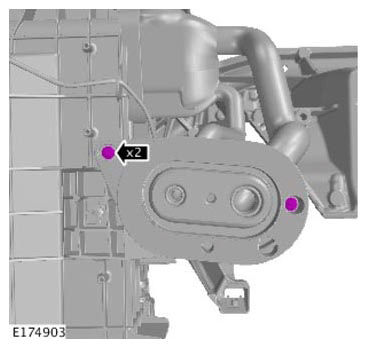

Torque Specification: 1.5 Nm
CAUTION:
- Take care not to damage the O-ring seals during installation.

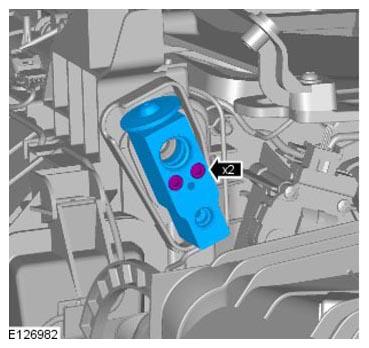

Torque Specification: 5 Nm

CAUTION:

Take care not to damage the O-ring seals during installation.

Torque Specification: 3.5 Nm
