Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging (General Procedures).
  3. Refer to: Fender Splash Shield .

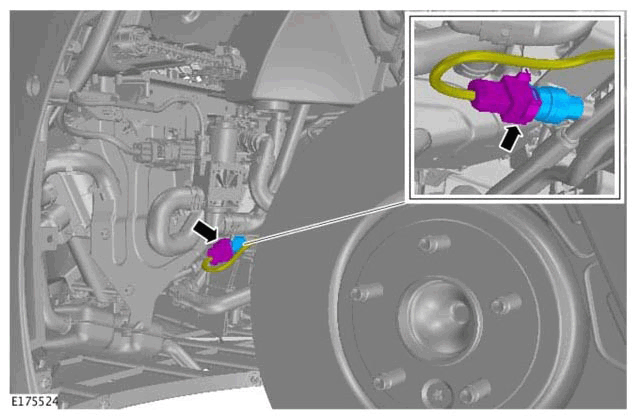

  4. CAUTION: Make sure the air conditioning (A/C) hose does not turn when removing the low pressure switch.
    G11315030

    Torque Specification: 8 Nm
