Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

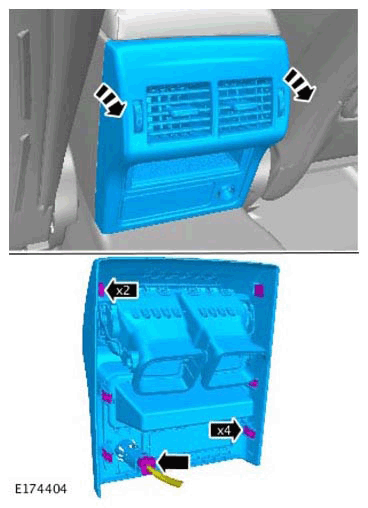

  1. Remove floor vent facia trim.
    G11314943

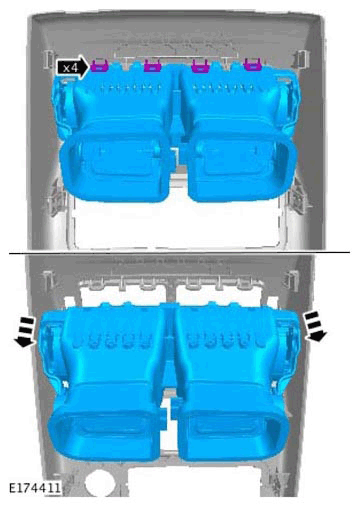

  2. Remove register.
    G11314944
