Integrated Control Panel (ICP)
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

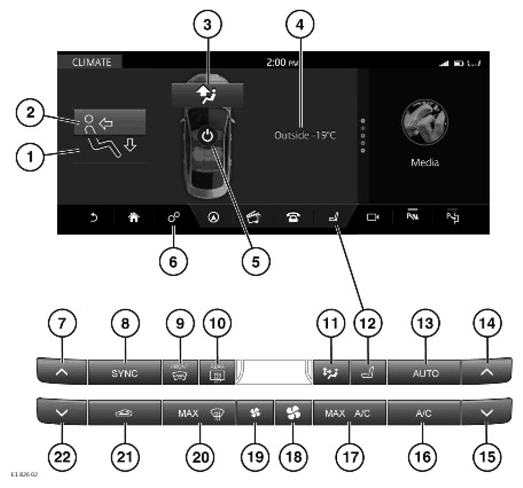

| ITEM | DESCRIPTION |
|---|---|
| 1 | Air distribution to the feet |
| 2 | Air distribution to the face |
| 3 | Windscreen air distribution |
| 4 | Ambient air temperature |
| 5 | Climate control system on/off |
| 6 | Climate control settings menu |
| 7 | Increase temperature front left side of vehicle |
| 8 | Synchronize driver and front passenger climate zone settings |
| 9 | Heated windshield |
| 10 | Heated rear window |
| 11 | Air distribution menu |
| 12 | Front heated/climate seats menu |
| 13 | AUTO mode |
| 14 | Increase temperature front right side of vehicle |
| 15 | Decrease temperature front right side of vehicle |
| 16 | A/C: Air conditioning system on/off |
| 17 | MAX A/C: Maximum air conditioning mode on/off |
| 18 | Increase blower speed |
| 19 | Decrease blower speed |
| 20 | Maximum windshield defrost on/off |
| 21 | Recirculation |
| 22 | Decrease temperature front left side of vehicle |
