Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging (General Procedures).
  2. Refer to: Front Bumper Cover .

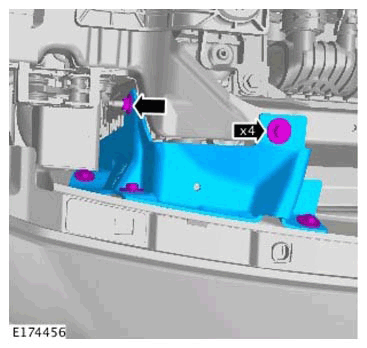

  3. G11315040

    Repeat procedure for the other side.

  4. CAUTION: Immediately cap all refrigerant lines to prevent ingress of dirt and moisture.
    G11307166

    Torque Specification: 20 Nm

  5. CAUTION: Immediately cap all refrigerant lines to prevent ingress of dirt and moisture.
    G11307167

    Torque Specification: 20 Nm

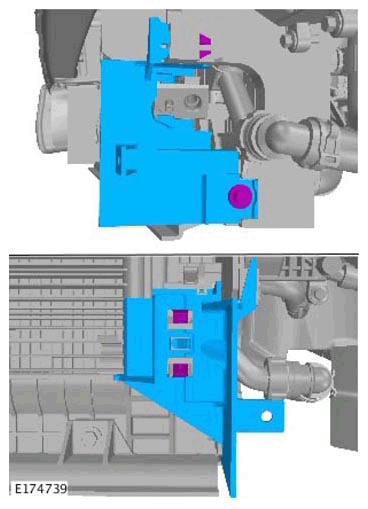

  6. G11315043

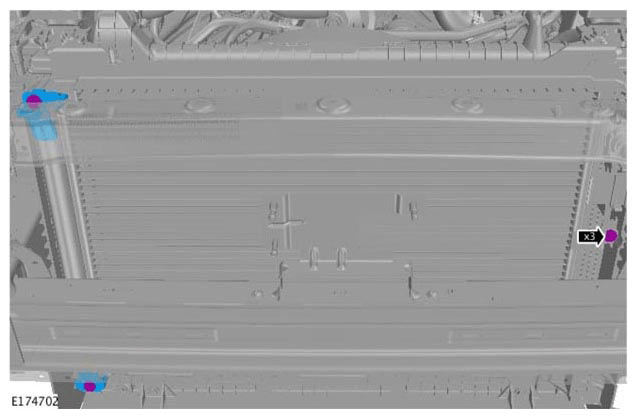

  7. G11315044

    Torque Specification: 10 Nm

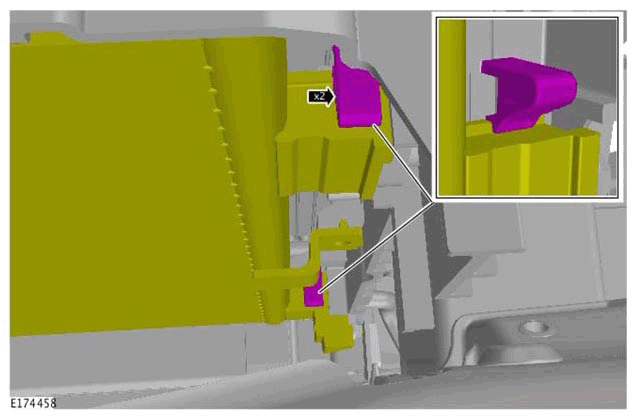

  8. G11315045

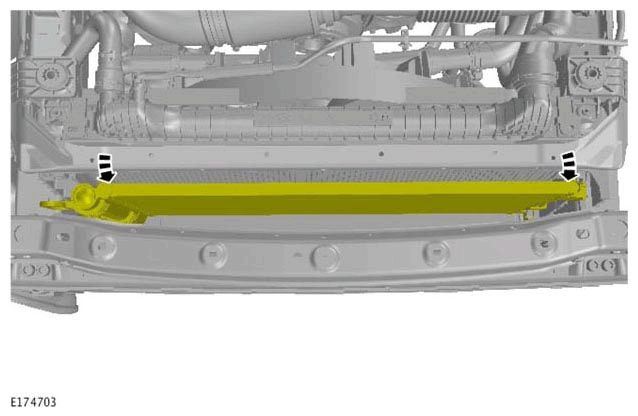

  9. G11315046

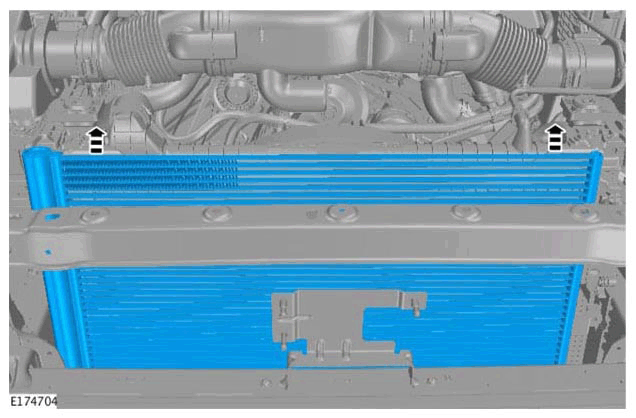

G11315047
