Removal And Installation: Removal
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: Lifting .
- Drain the cooling system.
Refer to: Cooling System Draining and Vacuum Filling .
- Remove the air cleaner pipe connector.
Refer to: Air Cleaner Outlet Pipe T-Connector .
- Remove the air cleaner outlet pipe.
Refer to: Left Air Cleaner Outlet Pipe .
- Remove the air cleaner.
Refer to: Left Air Cleaner .

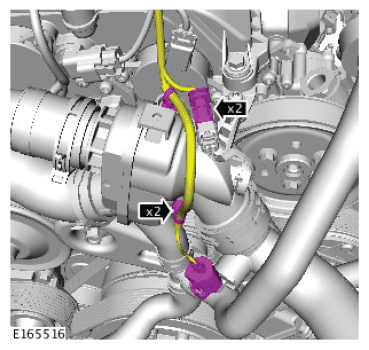

- Disconnect the 2 coolant pipes.CAUTION: Be prepared to collect escaping coolant.

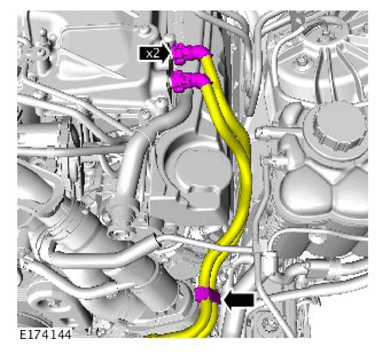

- Disconnect the electrical connectors.

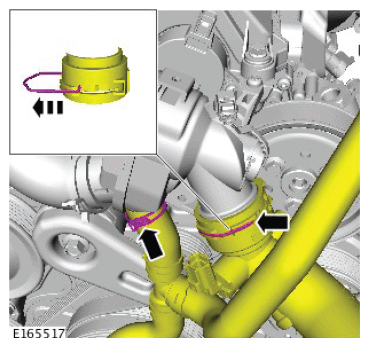

- Disconnect the 2 coolant pipes.CAUTION: Be prepared to collect escaping coolant.

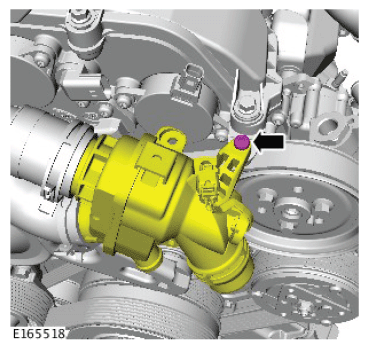

- Remove the bolt.

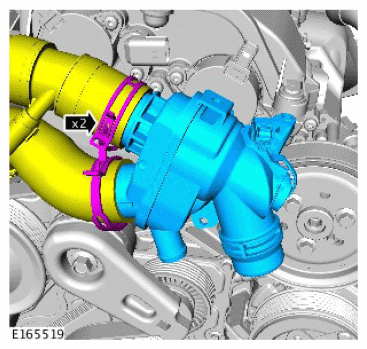

- Release the clips and remove the electric thermostat.CAUTION: Be prepared to collect escaping coolant.NOTE: The retaining clips cannot be removed from the pipe.
