Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Lay the glass on felt covered supports. Do not stand on edge as this can cause chips which subsequently develop into cracks.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Cowl Vent Screen (Removal and Installation).
  2. NOTE: Repeat the step for the other side.

    Refer to: A-Pillar Trim Panel (Removal and Installation).

  3. Refer to: Rain Sensor (Removal and Installation).
  4. G11312119
  5. G11312120
  6. G11312121

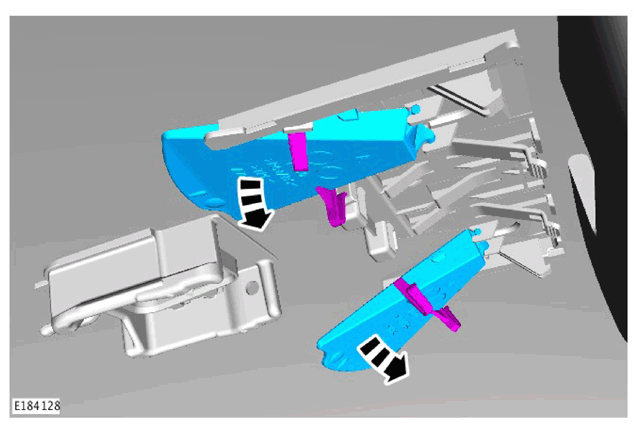

  7. G11312122

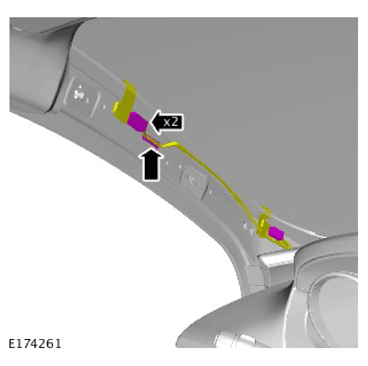

  8. G11312123

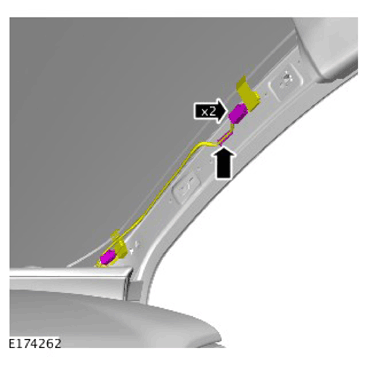

  9. G11312124
  10. NOTE: Repeat the step for the other side.

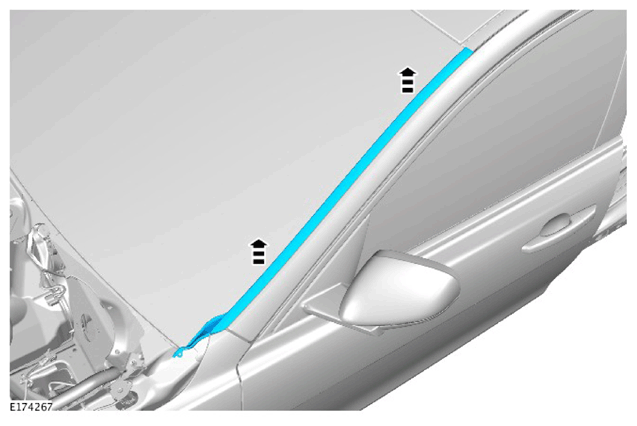

    G11312125

    Remove and discard A pillar mouldings.

  11. CAUTION:
    • Protect the surrounding components.
    • Protect the surrounding paintwork to avoid damage.

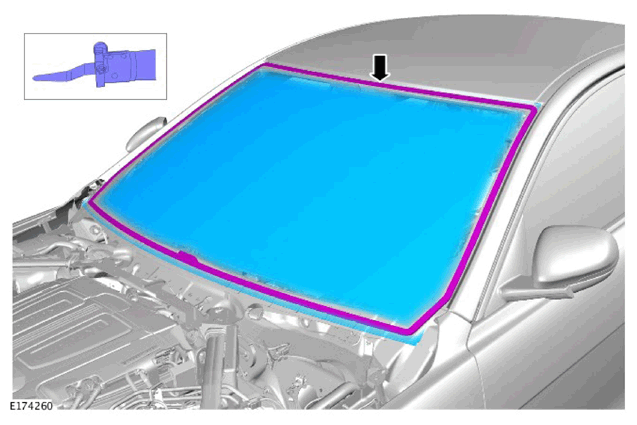

    G11312126
  12. WARNING: This step requires the aid of another technician.

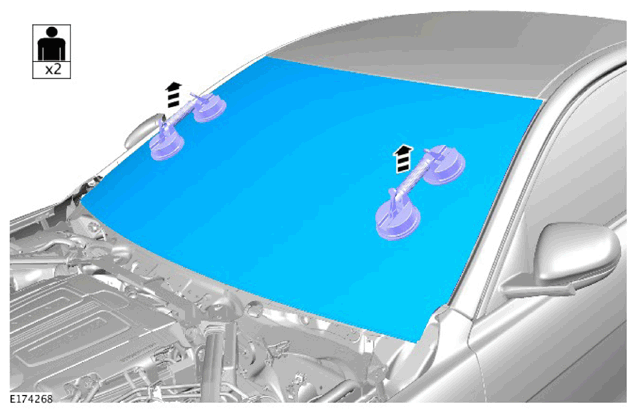

    G11312127
