Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

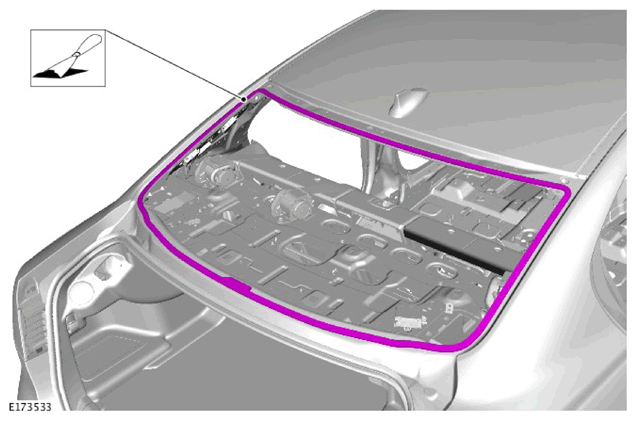

  1. CAUTION: Make sure that the mating faces are clean and free of foreign material.
    G11312094

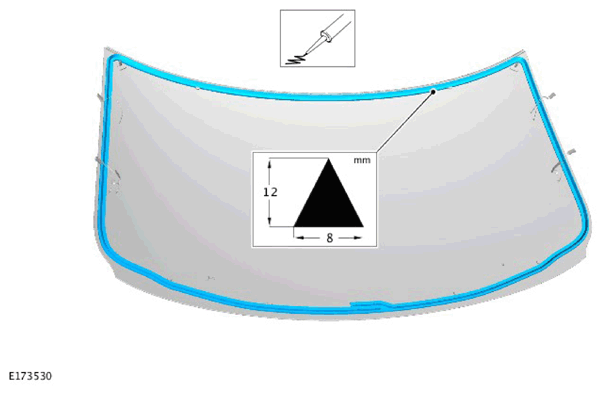

  2. CAUTION: Touching the adhesive surface will impair re-bonding.
    NOTE: Make sure that a Hi-modulus sealer (for example, Wurth Ultimate adhesive) is used when bonding the component to the vehicle.
    G11312095

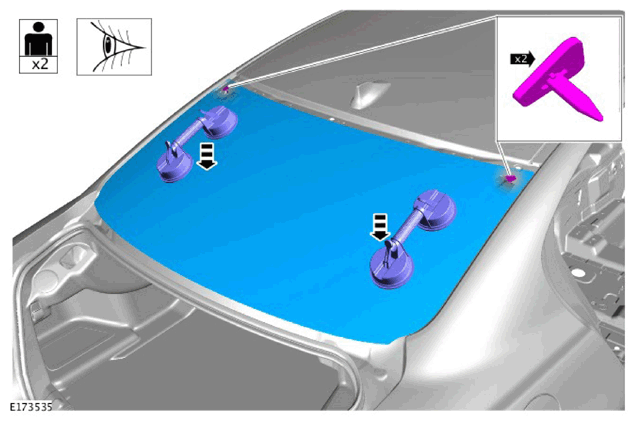

  3. CAUTION: Make sure that equal pressure is applied to the full length of the component.
    NOTE: This step requires the aid of another technician.
    G11312096

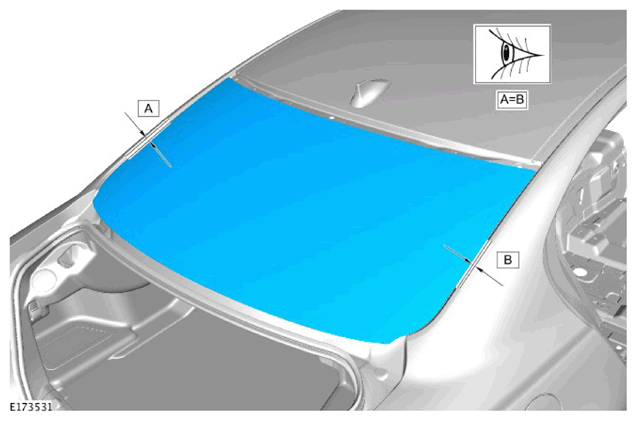

  4. NOTE: Make sure that the gap around the component is even.
    G11312097
  5. G11312090
  6. G11312091
  7. Refer to: High Mounted Stoplamp (Installation).

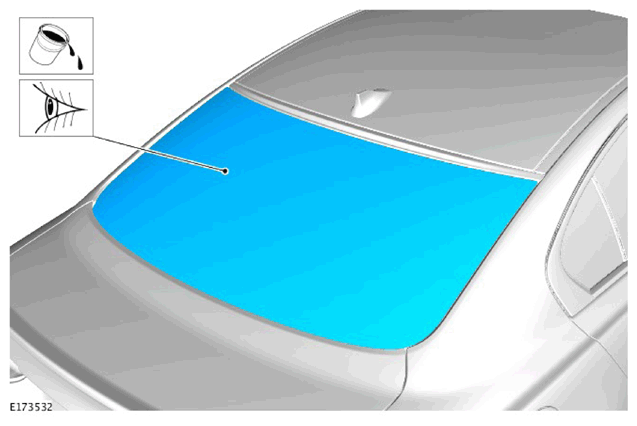

  8. CAUTION: Make sure that no excess sealant residue is evident.
    G11312100
    • If water is used as a means for the leak check, then allow sealant to dry before testing.
    • Spray water around the windshield glass, mark any area that leaks. Dry the windshield glass and sealant before applying additional sealant.
  9. Refer to: Parcel Shelf (Installation).
