Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Use a suitable trim tool.
NOTE: Removal steps in this procedure may contain installation details.

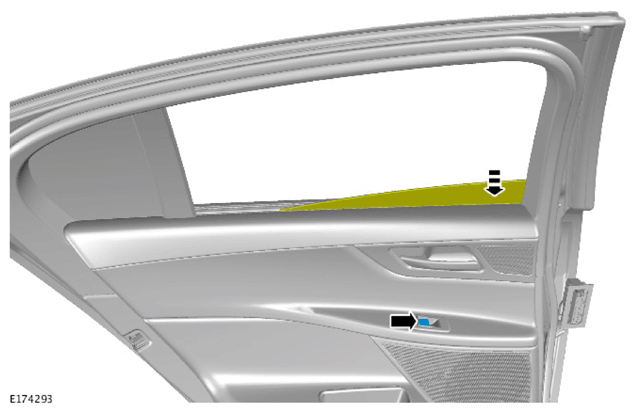

  1. G11312108

    Lower the rear door window glass.

  2. Remove the rear door trim panel.

    Refer to: Rear Door Trim Panel (Removal and Installation).

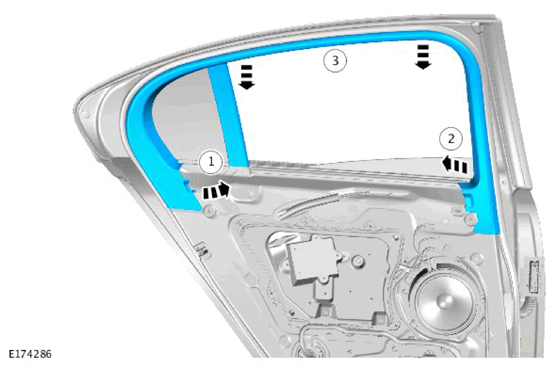

  3. G11312109

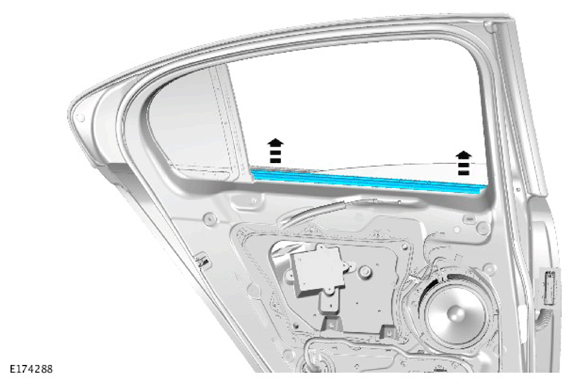

  4. G11312110

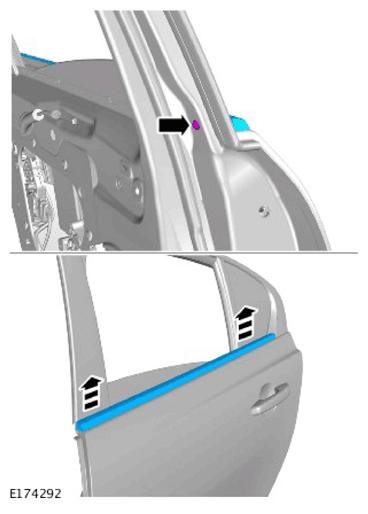

  5. G11312111

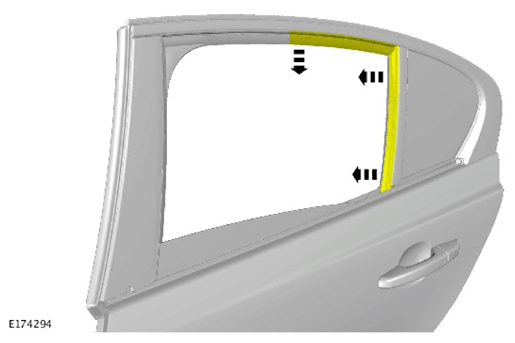

  6. G11312112

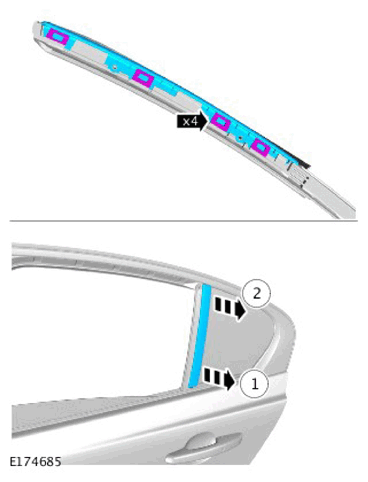

  7. G11312113

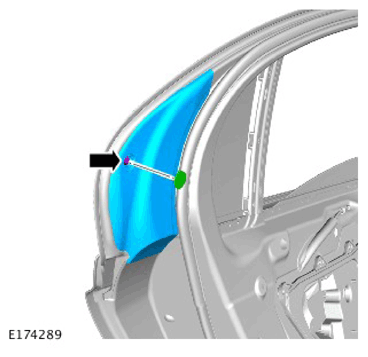

  8. G11312114

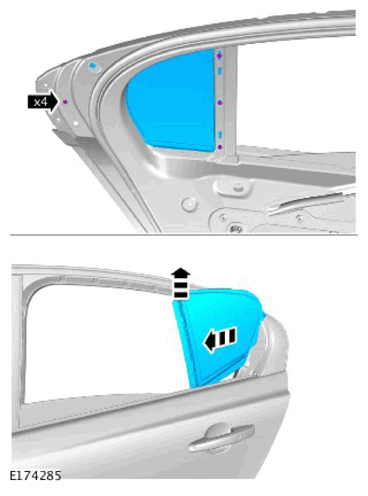

  9. CAUTION: Note the installed position of the component prior to removal.
    G11312115
