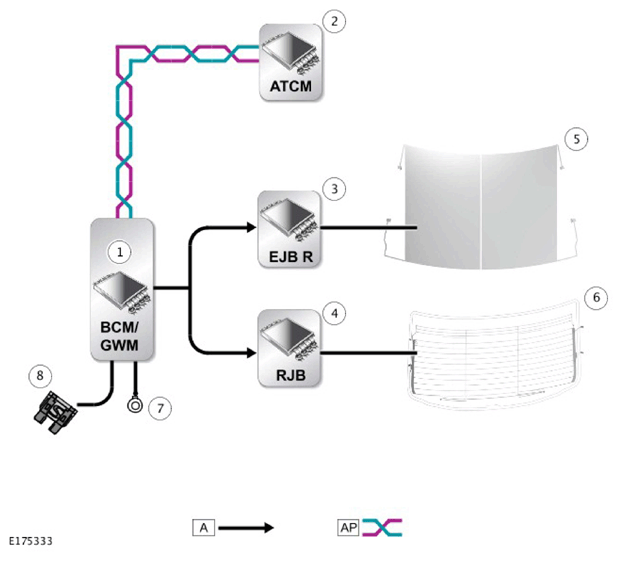

Input/Output Diagram - Heated Rear Window And Windshield Heater
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED; AO = MEDIUM SPEED CAN BODY BUS; AP = MEDIUM SPEED CAN COMFORT BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Body Control Module/Gateway Module (BCM/GWM) |
| 2 | Automatic Temperature Control Module (ATCM) |
| 3 | Right Engine Junction Box (EJB) |
| 4 | Rear Junction Box (RJB) |
| 5 | Windshield heater elements |
| 6 | Rear window heater element |
| 7 | Ground |
| 8 | Power feed |
