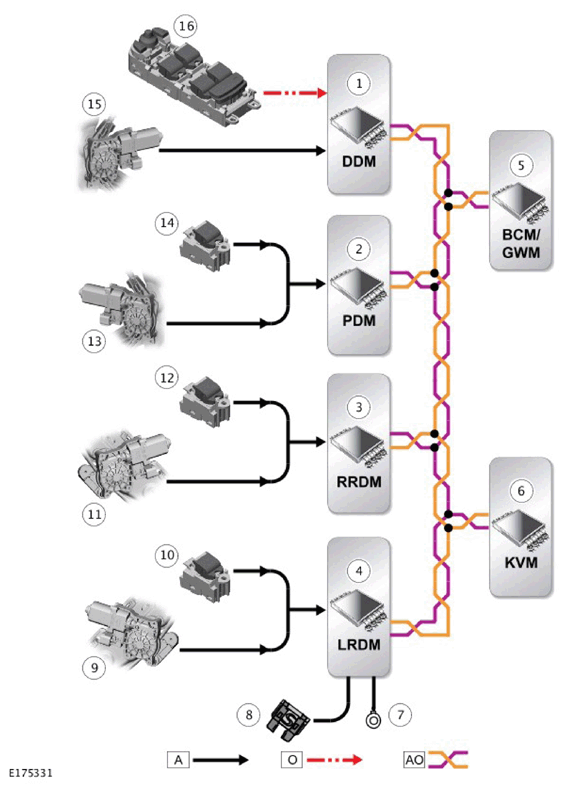

Input/Output Diagram - Door Glass
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED; AO = MEDIUM SPEED CAN BODY BUS; O = LIN BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Driver Door Module (DDM) |
| 2 | Passenger Door Module (PDM) |
| 3 | Right Rear Door Module (RDM) |
| 4 | Left Rear Door Module (RDM) |
| 5 | Body Control Module/Gateway Module (BCM/GWM) |
| 6 | Keyless Vehicle Module (KVM) |
| 7 | Ground |
| 8 | Power feed |
| 9 | Left rear window motor |
| 10 | Left rear window switchpack |
| 11 | Right rear window motor |
| 12 | Right rear window switchpack |
| 13 | Passenger window motor |
| 14 | Passenger window switchpack |
| 15 | Driver window motor |
| 16 | Driver window switchpack |
