Passenger Door Switchpacks

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
G11312074

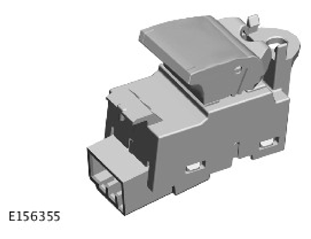

Individual window switches are installed in each of the three passenger doors. Window switches for all of the windows and a rear window isolation switch are installed in the driver door switchpack in the top surface of the door trim.

All window switches are of the non-latching rocker type. The switches have two switching positions in each direction, inch up/down and one-shot up/down. Operating the switch to the second detent position will activate the one-shot feature.

The driver door switchpack is powered by a permanent battery feed from the CJB (Central Junction Box). When the switches in the driver door switchpack are used, the switchpack translates the switch movement into a LIN (Local Interconnect Network) bus message. A LIN bus connects the driver door switchpack to the DDM (Driver Door Module). Each passenger window switch is hardwired into circuits with the related door module.
