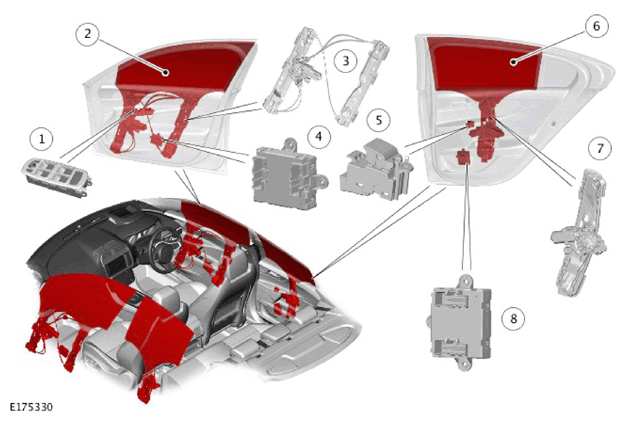

Component Location - Sheet 3 Of 3
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM |
DESCRIPTION |
| 1 |
Driver door switchpack |
| 2 |
Front door window - 2 of |
| 3 |
Front window lift mechanism - 2 of |
| 4 |
Driver Door Module (DDM) (Passenger Door Module (PDM) on passenger side) |
| 5 |
Door switchpack - 3 of |
| 6 |
Rear door window |
| 7 |
Rear window lift mechanism - 2 of |
| 8 |
Rear Door Module (RDM) - 2 of |
