Component Location - Sheet 1 Of 3

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

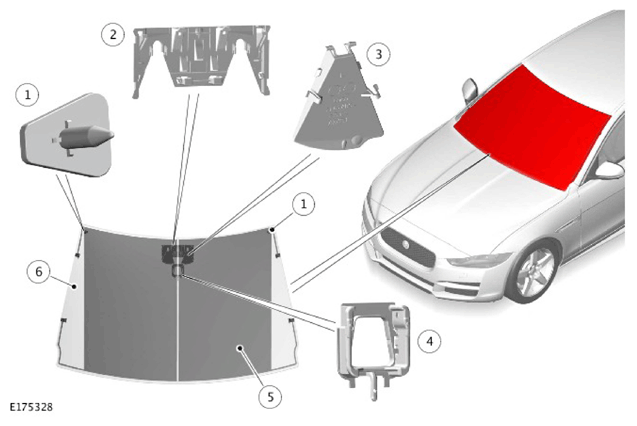

G11312070
ITEM DESCRIPTION
1 Windshield locator pin - 2 of
2 Mounting bracket
3 Camera bracket - 2 of
4 Rain/Light sensor bracket
5 Windshield heater element
6 Windshield
