Removal And Installation: Removal
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Make sure to protect the paint work.
NOTE:

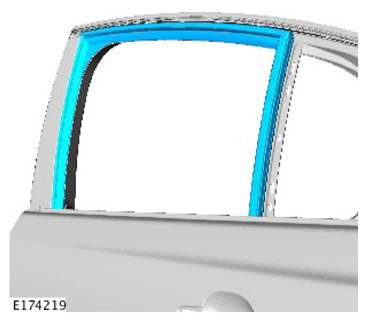

- If a new door is installed a weatherstrip must be installed.
- Some variation in the illustrations may occur, but the essential information is always correct.
- Some components shown removed for clarity.
- Removal steps in this procedure may contain installation details.
- If the door is to be removed for access, carry out Steps 7 to 10 only.
- For additional information, refer to: Supplemental Restraint System (SRS) Health and Safety Precautions .
- For additional information, refer to: Rear Door Speaker.
- For additional information, refer to: Rear Door Latch .
- For additional information, refer to: Rear Door Window .
- For additional information, refer to: Rear Door Fixed Window .
- For additional information, refer to: Battery Disconnect and Connect .
24 Nm
-

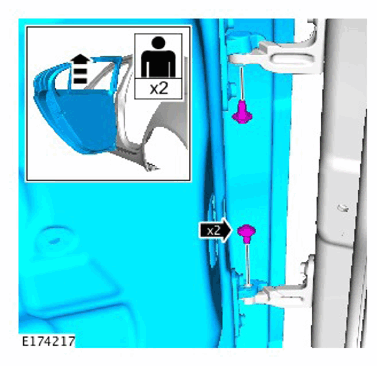

WARNING: The component(s) may be heavy. Take extra care when handling.
13 Nm
10 Nm
35 Nm
