Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

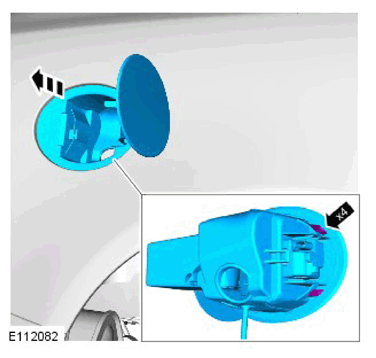

CAUTION: Do not align the bowl using the hinge arm.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
Refer to: Fuel Tank Filler Pipe (G2154468) .
CAUTION: Protect the surrounding paint work to avoid damage.

NOTE: Do not disassemble further if the component is removed for access only.

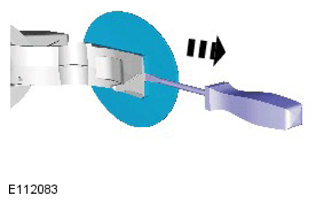

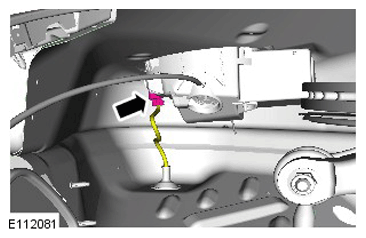

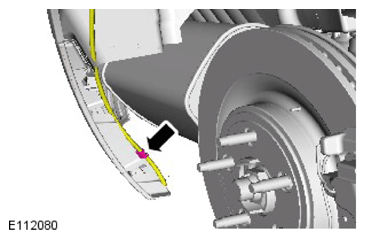

- Release the clip.
