Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Make sure to protect the paint work.
NOTE:
  • If a new door is installed a weatherstrip must be installed.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.
  • Removal steps in this procedure may contain installation details.
  1. If the door is to be removed for access, carry out Steps 7 to 10 only.
  2. Refer to: Supplemental Restraint System (SRS) Health and Safety Precautions .
  3. Refer to: Front Door Speaker
  4. Refer to: Front Door Window Regulator and Motor .
  5. Refer to: Front Door Latch .
  6. Refer to: EXTERIOR MIRROR (G1818611) .
  7. Refer to: Battery Disconnect and Connect .
  8. G11311537

    Torque Specification: 24 Nm

  9. G11311538
  10. WARNING: The component(s) may be heavy. Take extra care when handling.

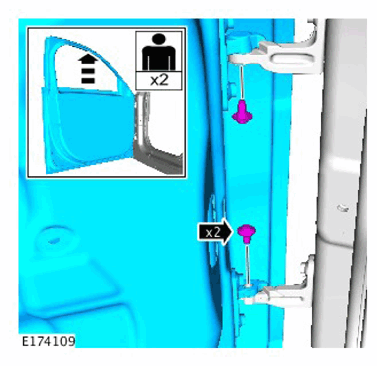

    G11311539

    Torque Specification: 13 Nm

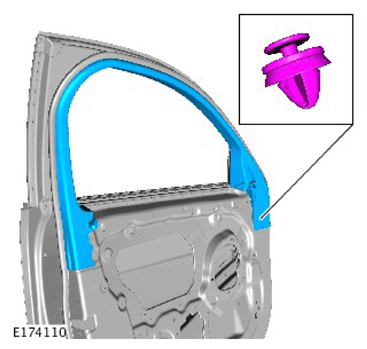

  11. G11311540
  12. G11311541
  13. G11311542

    Torque Specification: 10 Nm

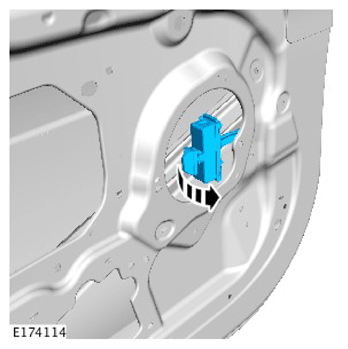

  14. G11311543

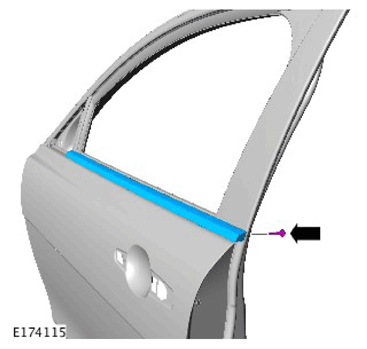

  15. G11311544

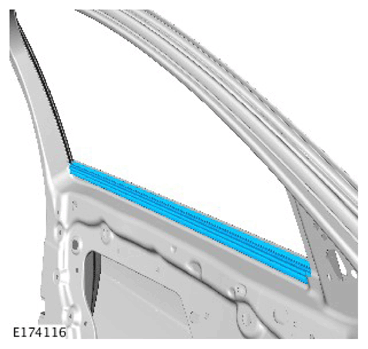

  16. G11311545
  17. G11311546

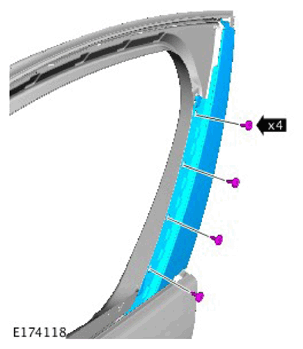

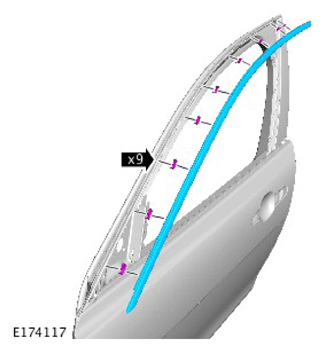

  18. G11311547

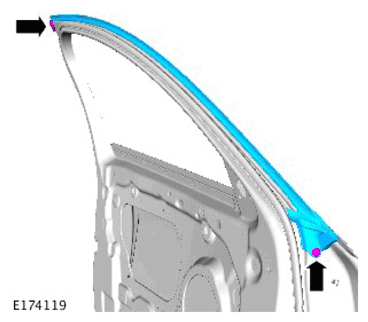

  19. G11311548

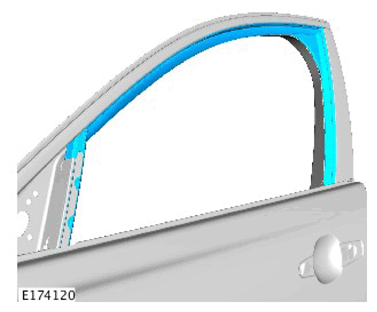

  20. G11311549
  21. G11311550

    Torque Specification: 35 Nm

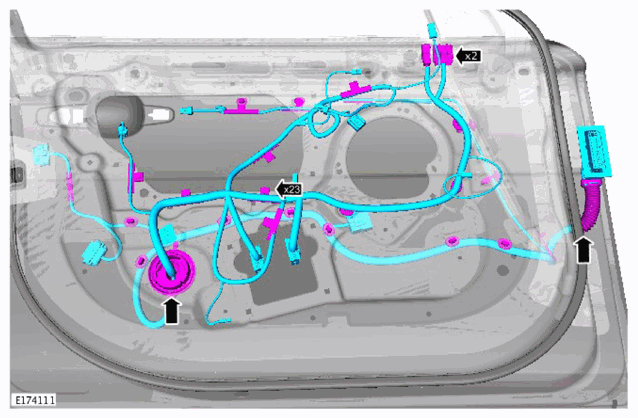

  22. G11311551
