Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • If a new battery is installed, the battery monitoring system (BMS) must be reset using Jaguar approved diagnostic equipment.
  1. Refer to: Battery and Battery Charging Health and Safety Precautions .
  2. Obtain and record the audio unit preset radio frequencies.
  3. G11310855
  4. NOTE: If equipped.

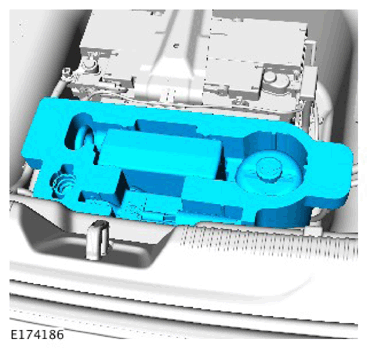

    G11310856
  5. NOTE: If equipped.
    G11310861

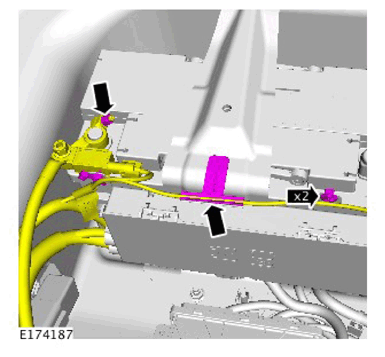

  6. G11310862

    Torque: 6 Nm

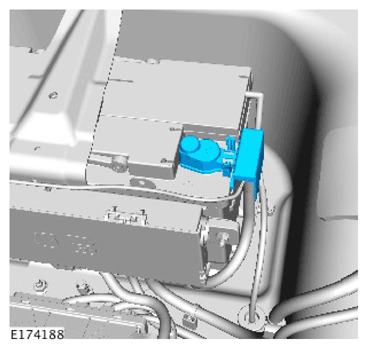

  7. G11310863

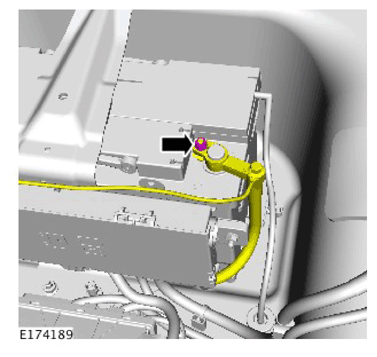

  8. G11310864

    Torque: 6 Nm

  9. WARNING: Batteries contain sulphuric acid, avoid contact with skin, eyes or clothing. Shield your face and protect your eyes when working near the battery to guard against possible splashing of the acid solution. In case of acid contact with the skin or eyes, flush immediately for a minimum of 15 minutes and seek prompt medical attention. If swallowed, call a physician immediately. Failure to follow these instructions may result in personal injury.

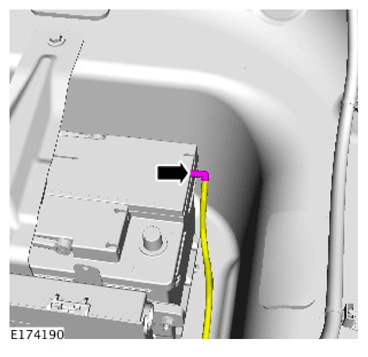

    G11310865

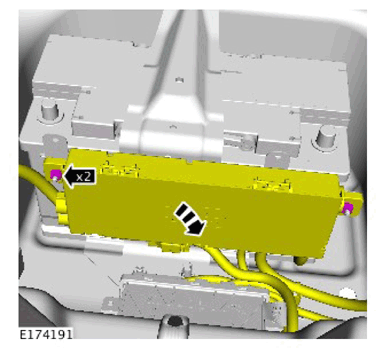

  10. G11310866

    Torque: 7 Nm

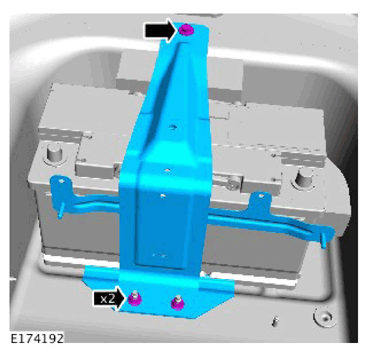

  11. G11310867

    Torque: 25 Nm

  12. CAUTION: Note the installed position of the noise, vibration and harshness (NVH) material prior to removal.

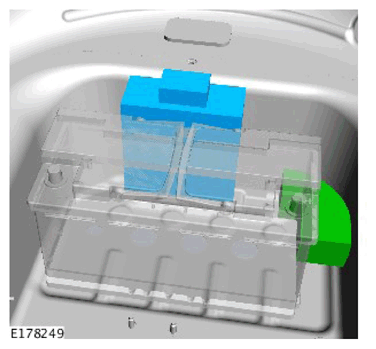

    G11310868

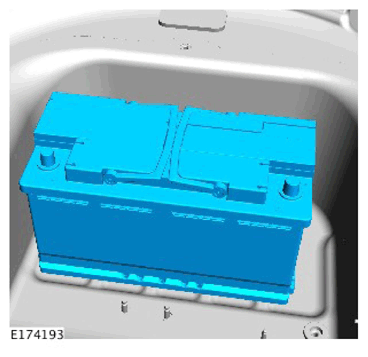

  13. G11310869
