Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  1. G11312435

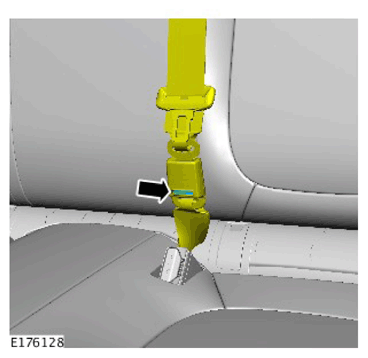

    Using a suitable tool, release the centre seat belt buckle.

  2. G11311898

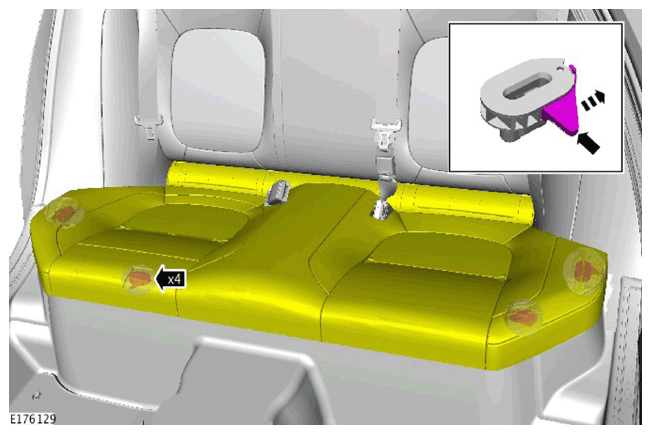

    Remove and discard the rear seat cushion retaining clips.

    Make sure new clips are fitted.

    Renew Part: Retaining clips Quantity: 4.

  3. G11312437

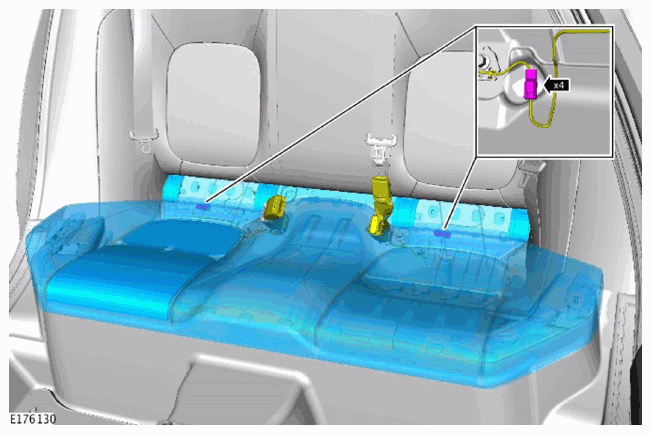

  4. G11311919

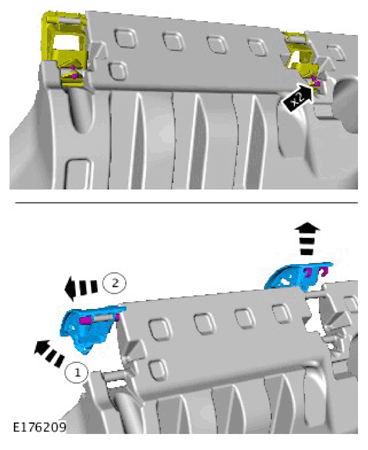

  5. G11311920
  6. G11311921

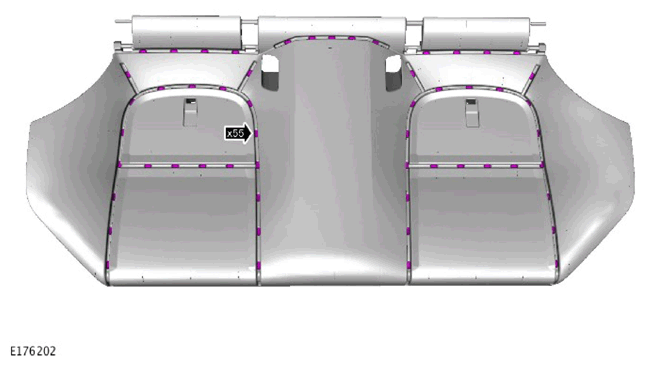

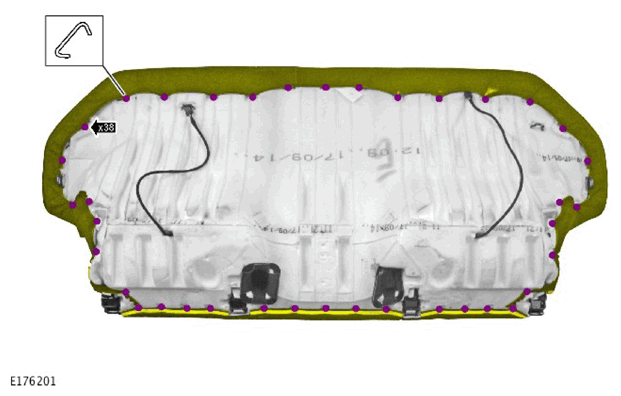

    Renew Part: Hog rings Quantity: 55.

  7. CAUTION: Take care not to damage the seat cushion during this step.

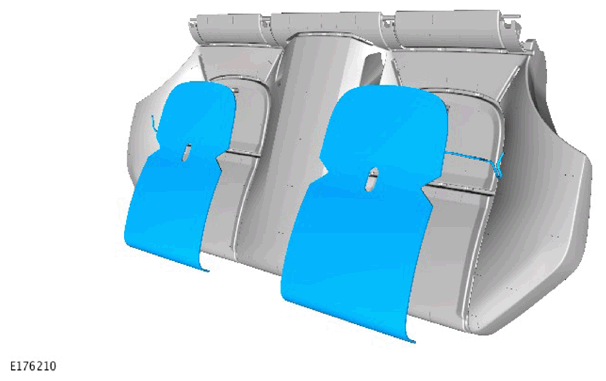

    G11311922
