Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION: Make sure that new hog rings are installed in the sequence shown.
    NOTE: Use hog ring pliers to close the hog rings. Do not use any other tool. The hog rings must be closed to overlap as illustrated.
    G11288759
  2. G11311920

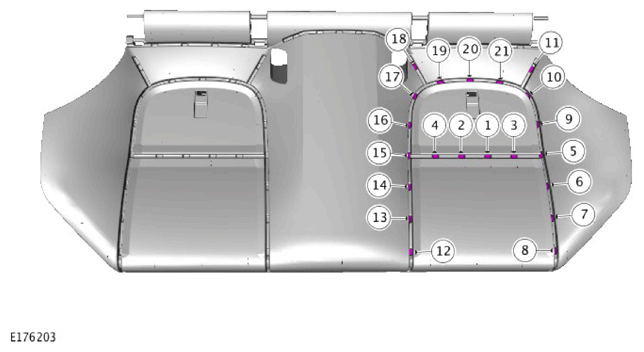

  3. CAUTION: Make sure that new hog rings are installed in the sequence shown.
    G11311925

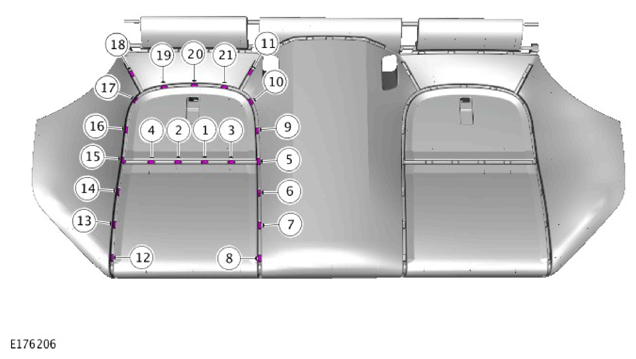

  4. CAUTION: Make sure that new hog rings are installed in the sequence shown.
    G11311926

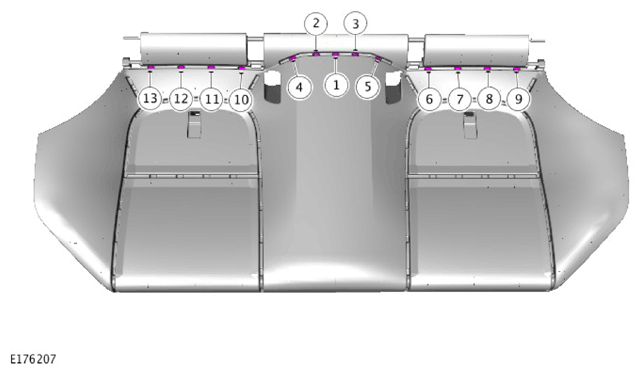

  5. CAUTION: Make sure that new hog rings are installed in the sequence shown.
    G11311927
  6. To install, reverse the removal procedure.
