Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  1. G11312435
  2. G11311898

    Remove and discard the rear seat cushion retaining clips. Make sure new clips are fitted.

    Renew Part: Retaining clips Quantity: 4.

  3. G11312437

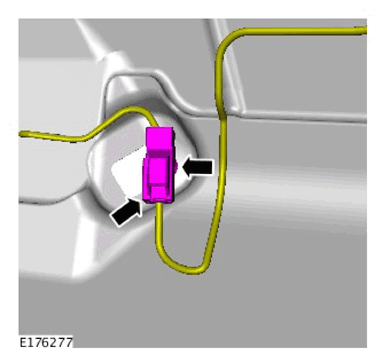

  4. G11311900

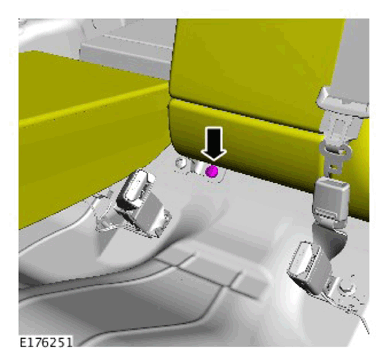

  5. G11311901

    Torque Specification: 30 Nm

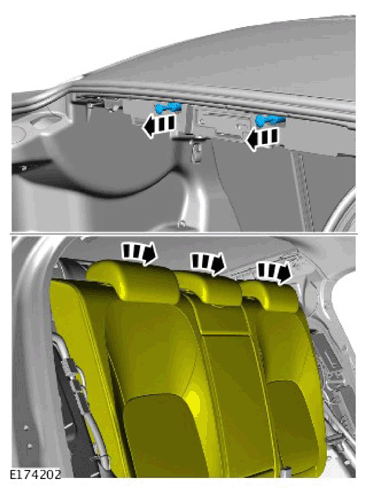

  6. G11311902

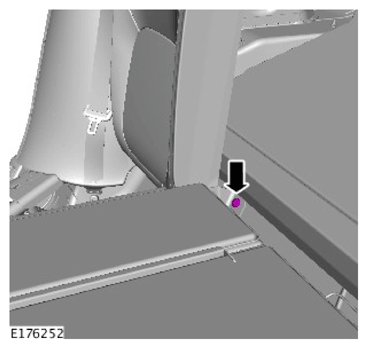

  7. G11311903

    Torque Specification: 30 Nm

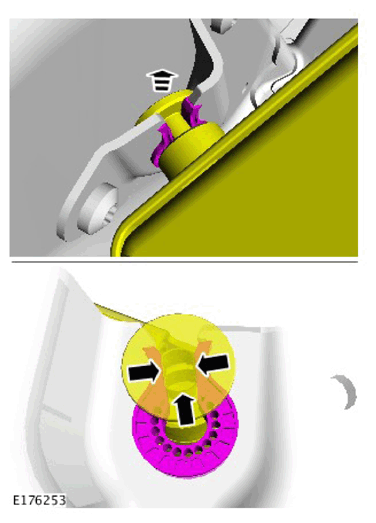

  8. CAUTION: Make sure that the component is aligned as shown.
    G11311904

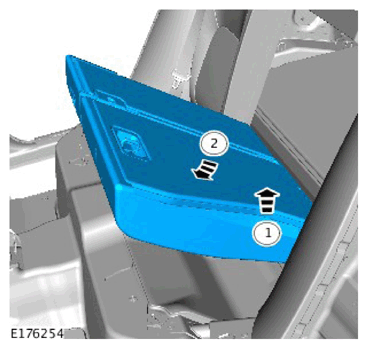

  9. WARNING: This step requires the aid of another technician.
    CAUTION:
    • Protect the surrounding paintwork to avoid damage.
    • Protect the surrounding trim to avoid damage.
    G11311905

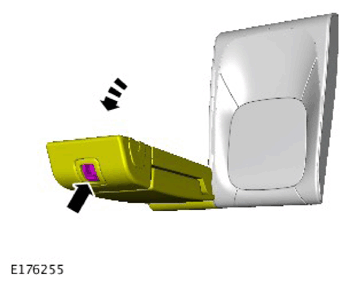

  10. G11311906

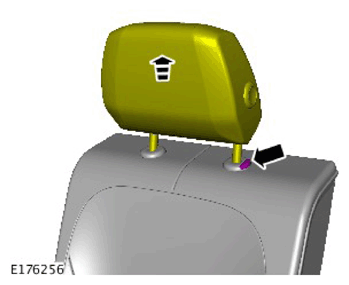

  11. NOTE: Raise the head restraint to its highest point.
    G11311907

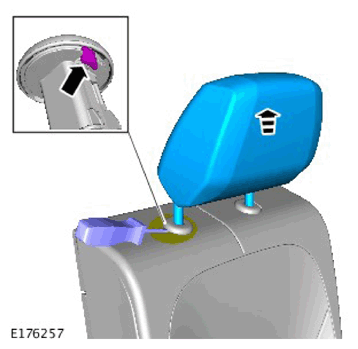

  12. CAUTION: A suitable tool must be used during this step to avoid damage to the head restraint retaining clip.
    G11311908

    Remove the head restraint.

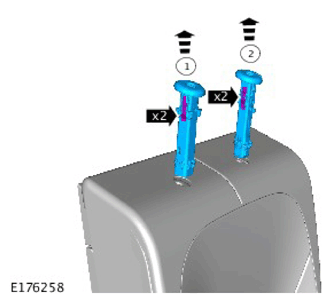

  13. G11311909

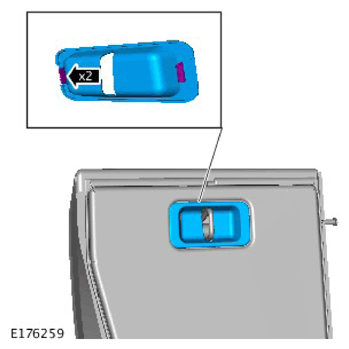

  14. G11311910

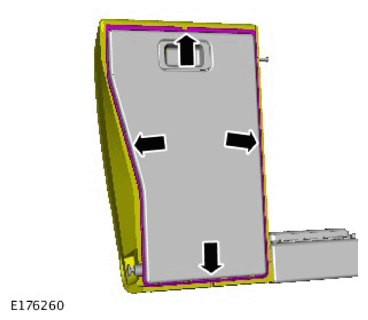

  15. G11311911

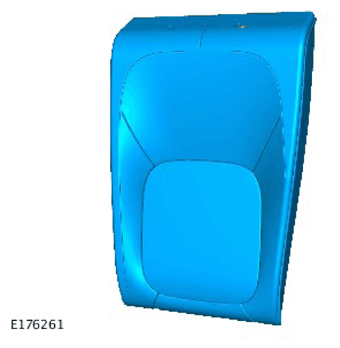

  16. G11311912

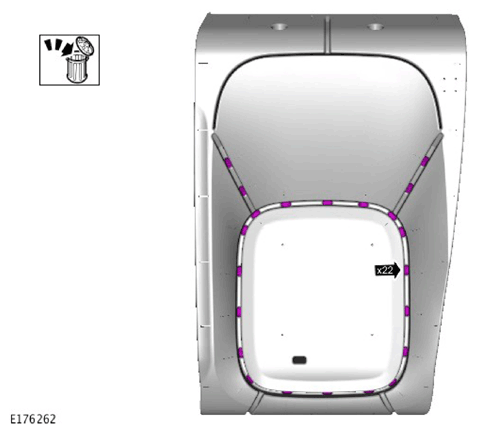

  17. G11311913

    Renew Part: Hog rings Quantity: 22.
