Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.

All vehicles

  1. Raise the front seat to the highest position.
  2. Refer to: FRONT ROW SEAT .
  3. NOTE: Discard the retaining clips.
    G11312501

    Long wheelbase

  4. G11288989
  5. G11288990

    Torque Specification: 8 Nm

  6. NOTE: Discard the retaining clips.
    G11312504

    All vehicles

  7. G11312505
  8. G11312506
  9. G11312507
  10. G11312509
  11. G11312510
  12. G11312511
  13. G11312512
  14. G11312513
  15. WARNING:
    • Do not probe supplemental restraint system (SRS) electrical connectors.
    • The SRS electrical connectors are unique. DO NOT force, or attempt to connect electrical connectors to the wrong sockets.
    NOTE: Left illustration shown, right is similar.
    G11312520
  16. G11311790
  17. G11311791
  18. G11311792
  19. G11311793
  20. G11312518

    Vehicles with heated seats.

  21. G11311795
  22. G11312493
  23. G11311797
  24. G11311798
  25. G11311799
  26. G11311800
  27. G11311801
  28. G11312491
  29. G11312492

    NAS vehicles.

  30. G11311804
  31. G11312494
  32. G11311806
  33. G11311807

    Torque Specification: 5 Nm

  34. G11311808
  35. G11311809
  36. G11312416

    Torque Specification: 40 Nm

  37. G11311811

    Torque Specification: 6 Nm

  38. G11311812
  39. NOTE: The front seat cushion shown removed for clarity.

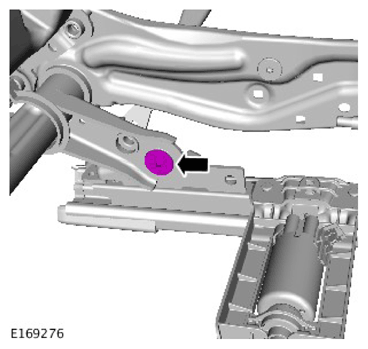

    G11311851

    Torque Specification: 28 Nm

  40. CAUTION: Discard the bolt.

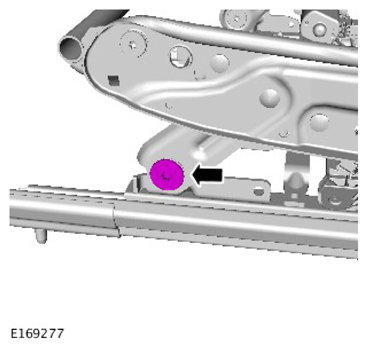

    G11311852

    Torque Specification: 28 Nm

  41. CAUTION: Discard the bolt.

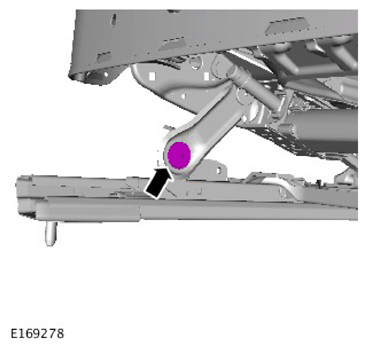

    G11311853

    Torque Specification: 28 Nm

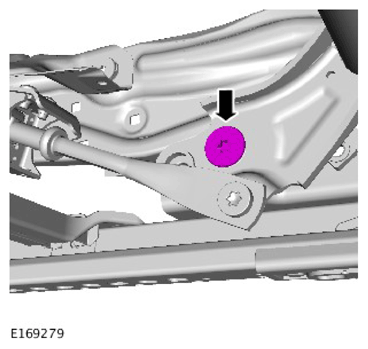

  42. G11311854

    Torque Specification: 28 Nm

  43. CAUTION:
    • Make sure that only the head of the fixing is removed. Do not drill any deeper than necessary. Failure to follow this instruction may result in damage to the component.
    • Make sure that the area around the component is clean and free of foreign material.

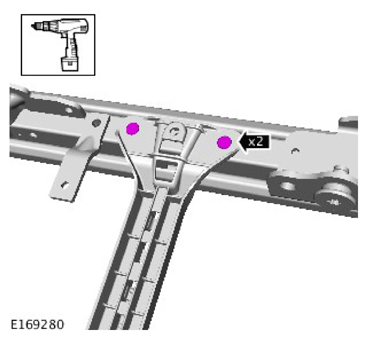

    G11311855
  44. CAUTION:
    • Make sure that only the head of the fixing is removed. Do not drill any deeper than necessary. Failure to follow this instruction may result in damage to the component.
    • Make sure that the area around the component is clean and free of foreign material.

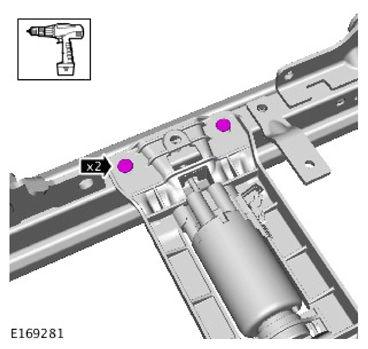

    G11311856
  45. NOTE: Note the orientation of the component prior to removal.

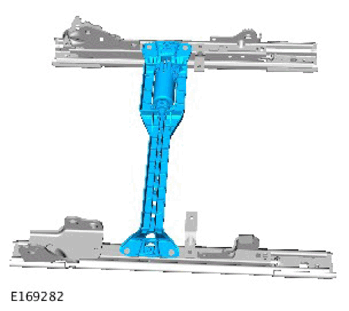

    G11311857
  46. NOTE: Repeat the procedure for the other side.
    G11311858

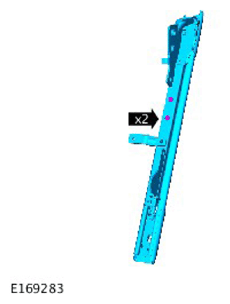

    • Using a suitable tool, remove the old rivets from the seat runners.
