Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Removal steps in this procedure may contain installation details.

All vehicles

Refer to: FRONT ROW SEAT .

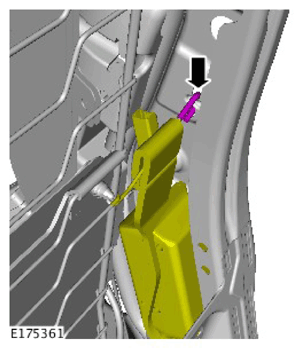

CAUTION: A suitable tool must be used during this step to avoid damage to the head restraint retaining clips.
Vehicles with heated front seats
WARNING:
- Do not probe supplemental restraint system (SRS) electrical connectors.
- The SRS electrical connectors are unique. DO NOT force, or attempt to connect electrical connectors to the wrong sockets.

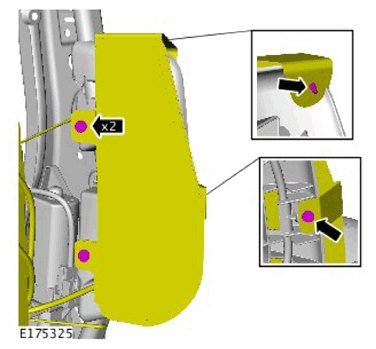

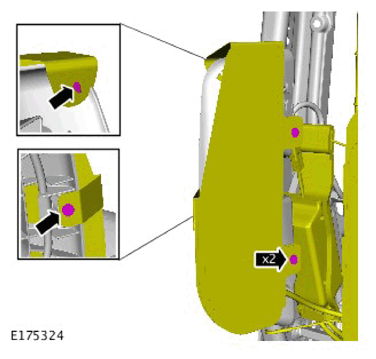

NOTE: LH illustration shown, RH is similar.

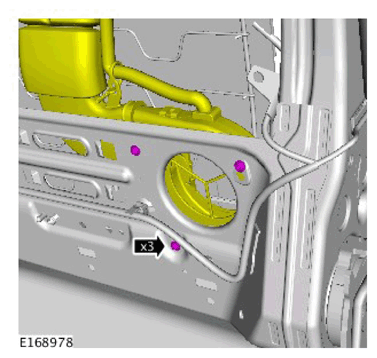

Torque Specification: 7 Nm

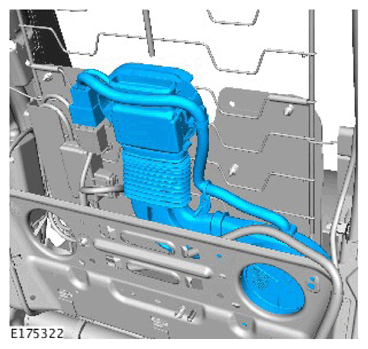

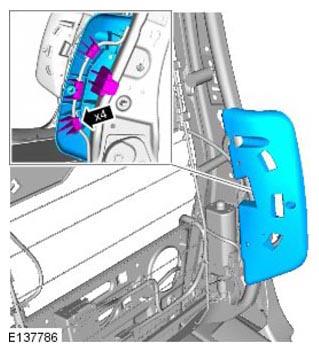

CAUTION: Care must be taken not to damage the component.
CAUTION: Care must be taken not to damage the component.

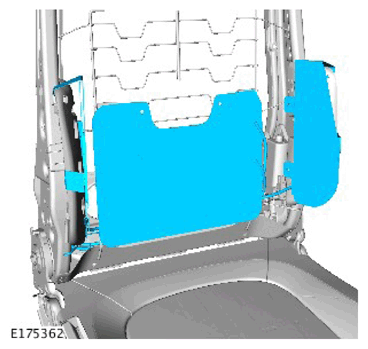

CAUTION:
- Care must be taken not to damage the component.
- Take extra care not to damage the surrounding components.

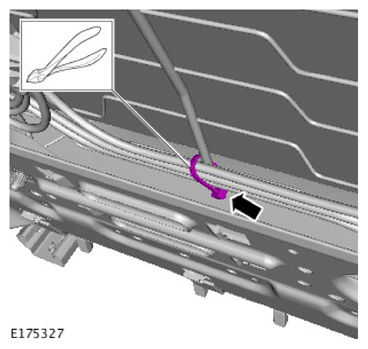

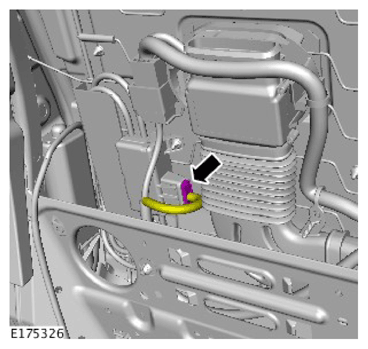

NOTE: Remove and discard the securing tie strap.
Release the hook from the seat frame, as illustrated.
NOTE: Repeat the procedure for the other side.

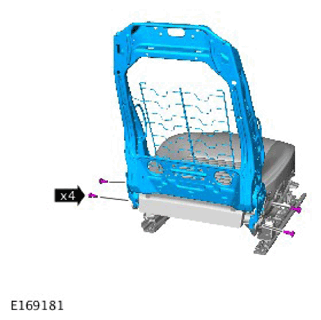

Torque Specification: 35 Nm
