Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • To avoid accidental deployment, the restraints control module backup power supply must be depleted. Wait at least two minutes after disconnecting the battery ground cable(s) before commencing any repair or adjustment to the supplemental restraint system (SRS), or any component(s) adjacent to the SRS sensors. Failure to follow these instructions may result in personal injury.
  • Always wear safety glasses when working on an air bag equipped vehicle and when handling an air bag module. Failure to follow this instruction may result in personal injury.
  • To minimize the possibility of injury in the event of premature deployment, always carry a live air bag module with the bag and trim cover pointed away from the body. Failure to follow this instruction may result in personal injury.
  • To minimize the possibility of premature deployment, do not use radio key code savers when working on the supplemental restraint system. Failure to follow this instruction may result in personal injury.
  • To minimize the possibility of premature deployment, live air bag modules must only be placed on work benches which have been ground bonded and with the trim cover facing up. Failure to follow these instructions may result in personal injury.
  • Never probe the electrical connectors of air bag modules or any other supplemental restraint system component. Failure to follow this instruction may result in personal injury.
  • Painting over the driver air bag module trim cover or instrument panel could lead to deterioration of the trim cover and air bags. Do not for any reason attempt to paint discolored or damaged air bag module trim covers or instrument panel. Install a new component. Failure to follow this instruction may result in personal injury.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.

All vehicles

  1. Raise the front seat to the highest position.
  2. Refer to: FRONT ROW SEAT .
  3. NOTE: Discard and replace the Squab back cover.
    G11312501

    Renew Part: Backrest cover and clips kit Quantity: 1.

    Long wheelbase

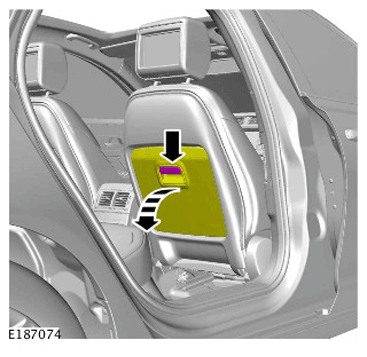

  4. G11288989

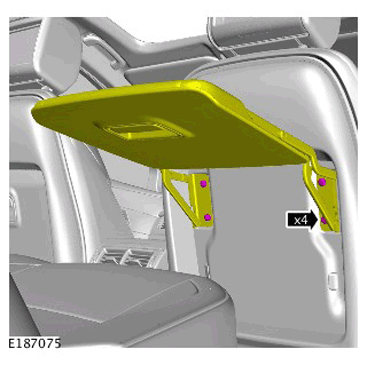

  5. G11288990

    Torque Specification: 8 Nm

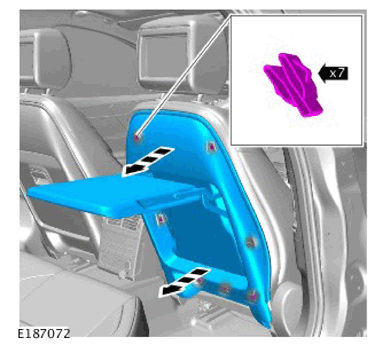

  6. NOTE: Discard and replace the squab back cover.
    G11312504

    Renew Part: Backrest cover and clips kit Quantity: 1.

    All vehicles

  7. G11312505
  8. G11312506
  9. G11312507
  10. G11312509
  11. G11312510
  12. G11312511
  13. G11312512
  14. G11312513
  15. WARNING:
    • Do not probe supplemental restraint system (SRS) electrical connectors.
    • The SRS electrical connectors are unique. DO NOT force, or attempt to connect electrical connectors to the wrong sockets.
    NOTE: Left illustration shown, right is similar.
    G11312520
  16. G11311790
  17. G11311791
  18. G11311792
  19. G11311793
  20. G11312518

    Vehicles with heated seats.

  21. G11311795
  22. G11312493
  23. G11311797
  24. G11311798
  25. G11311799
  26. G11311800
  27. G11311801
  28. G11312491
  29. G11312492

    NAS vehicles.

  30. G11311804
  31. G11312494
  32. G11311806
  33. G11311807

    Torque Specification: 5 Nm

  34. G11311808
  35. G11311809
  36. G11312416

    Torque Specification: 40 Nm

  37. G11311811

    Torque Specification: 6 Nm

  38. G11311812

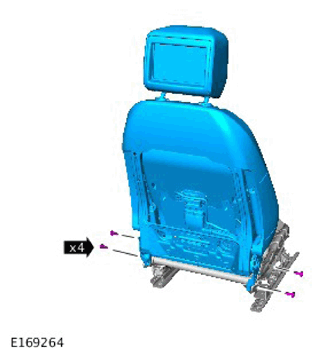

  39. G11311813

    Torque Specification: 35 Nm

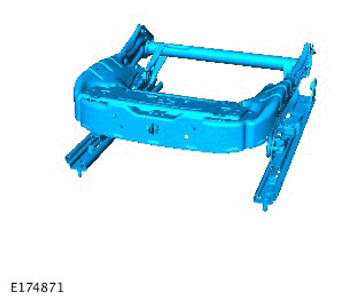

  40. G11311814
