Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

  1. NOTE:
    • Make sure that new hog rings are installed.

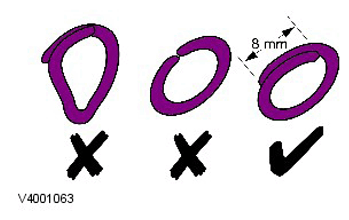

    • Use hog ring pliers to close the hog rings. Do not use any other tool. The hog rings must be closed to overlap as illustrated.
    G11288759

    Vehicles without climate controlled seats

  2. CAUTION: Make sure that new hog rings are installed in the sequence shown.
    G11311871

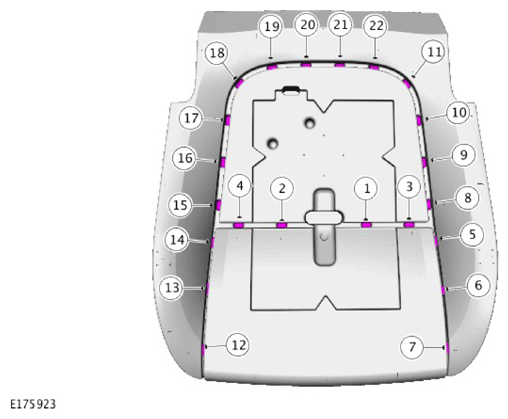

    Vehicles with climate controlled seats

  3. CAUTION: Make sure that new hog rings are installed in the sequence shown.
    G11312014
  4. To install, reverse the removal procedure.
