Heated Front Seat
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

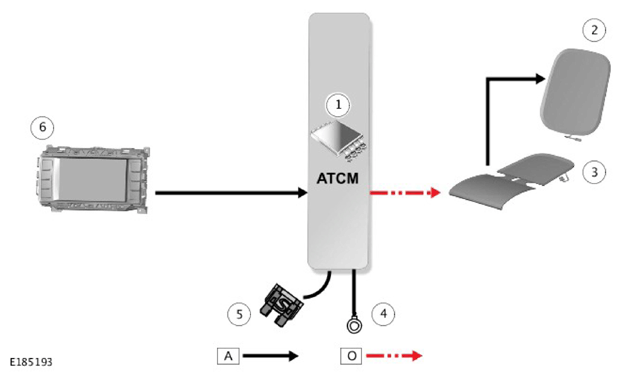

NOTE:
Driver seat shown, Passenger seat is similar.
A = HARDWIRED; O = LIN BUS.
| ITEM |
DESCRIPTION |
| 1 |
Automatic Temperature Control Module (ATCM) |
| 2 |
Heated seat backrest element |
| 3 |
Seat Heater Control Module (SHCM) (integrated in heater element) |
| 4 |
Ground |
| 5 |
Power supply |
| 6 |
Touch Screen (TS) |
