Warning symbols - Health and safety and component damage
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

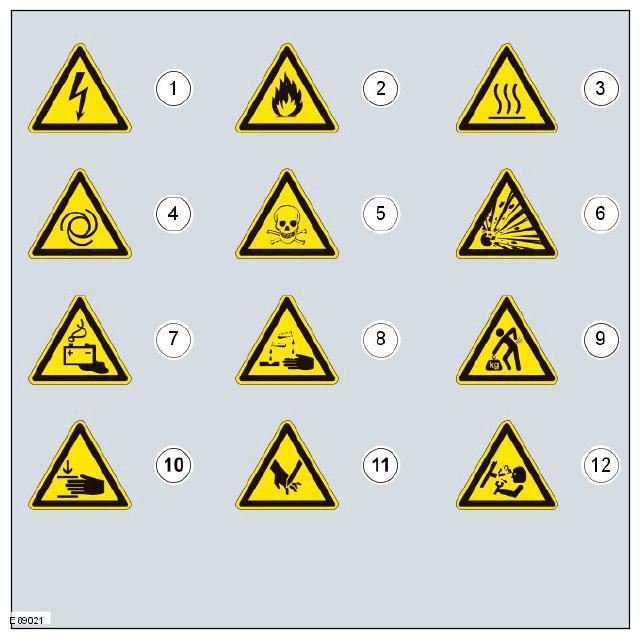

The warning symbols are used to advise on hazardous conditions to avoid or at least reduce possible component damage and health and safety risks.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Hazardous voltage/Electrical shock/Electrocution |
| 2 | Fire Hazard/Highly flammable |
| 3 | Burn hazard/Hot surface |
| 4 | Automatic start-up |
| 5 | Toxic |
| 6 | Explosive material |
| 7 | Battery hazard |
| 8 | Corrosive material |
| 9 | Lifting hazard |
| 10 | Hand crush/Force from above |
| 11 | Cutting of fingers or hand |
| 12 | Pressure hazard |
