Material symbols
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

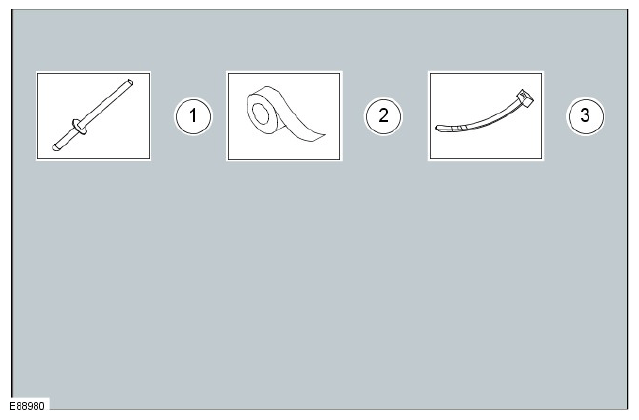

The material symbols are used to show where to use which type of material to carry out a procedure step.
| ITEM |
DESCRIPTION |
| 1 |
Remove/Install the specified blind rivet |
| 2 |
Apply tape to the specified component/area |
| 3 |
Remove/Install the specified cable tie |
