References To LH (Left-Hand) And RH (Right-Hand)
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

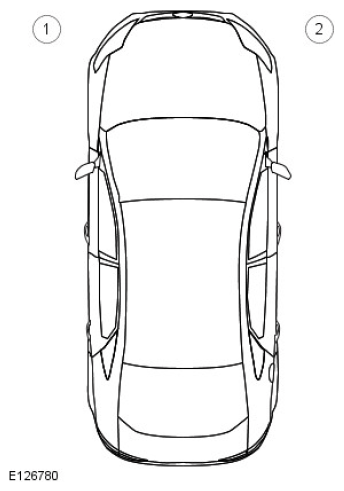

All LH and RH references to the vehicle are taken from a position sitting in the driver seat looking forward.
Vehicle LH and RH definition
| ITEM | DESCRIPTION |
|---|---|
| 1 | LH |
| 2 | RH |
All LH and RH references to the engine are taken from a position at the flywheel looking towards the crankshaft front pulley.
Powertrain LH and RH definition
| ITEM | DESCRIPTION |
|---|---|
| 1 | front |
| 2 | right |
| 3 | rear |
| 4 | left |
