TAS Symbols

Symbols are used inside the graphics and in the text area to enhance the information display. The following paragraphs describe the various types and categories of symbols.

For additional information, refer to: Symbols Glossary  (Description and Operation).

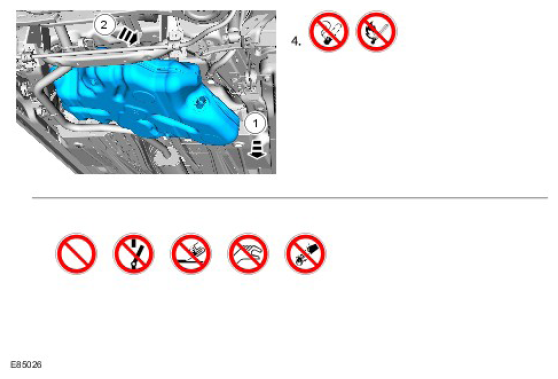

Prohibition symbols advise on prohibited actions to either avoid damage or health and safety related risks. These symbols are

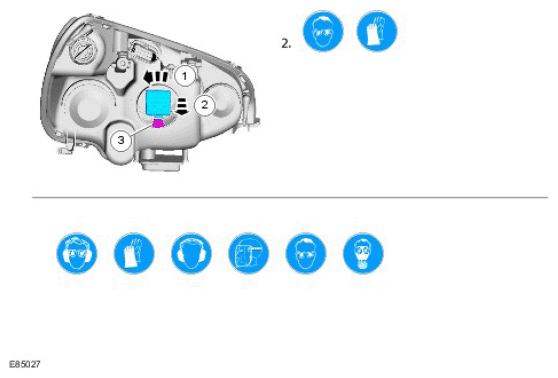

Health and Safety symbols recommend the use of particular protection equipment to avoid or at least reduce the risk or severity of possible injuries.

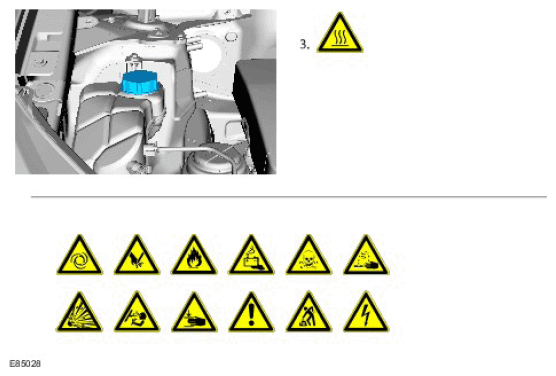

Warning symbols are used to indicate potential risks resulting from a certain component or area.

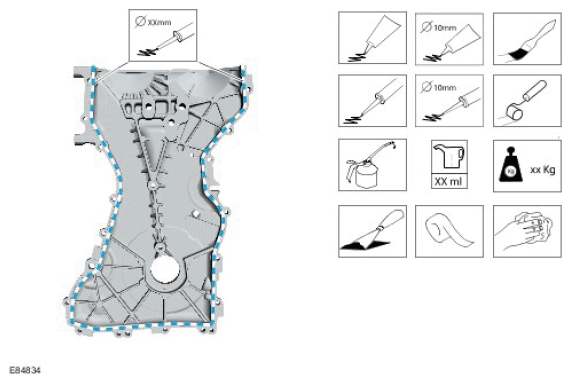

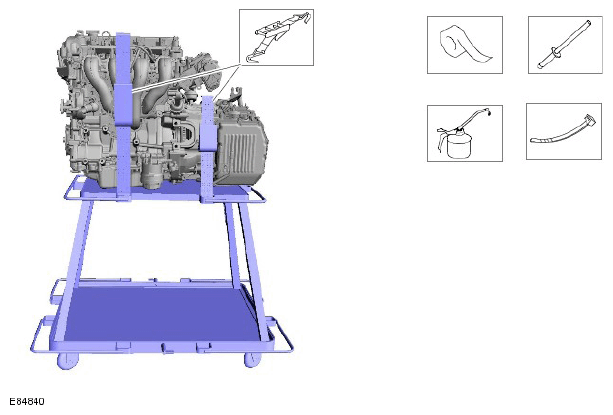

Instruction symbols are used to apply sealer, lubricant, weight, tape or cleaning detergent to a component.

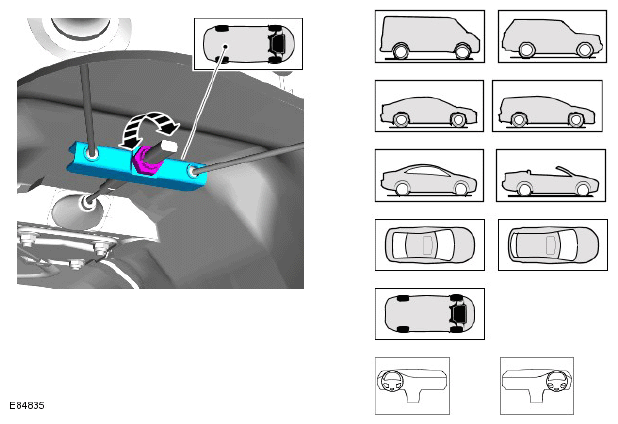

Location symbols are used to show the location of a component or system within the vehicle.

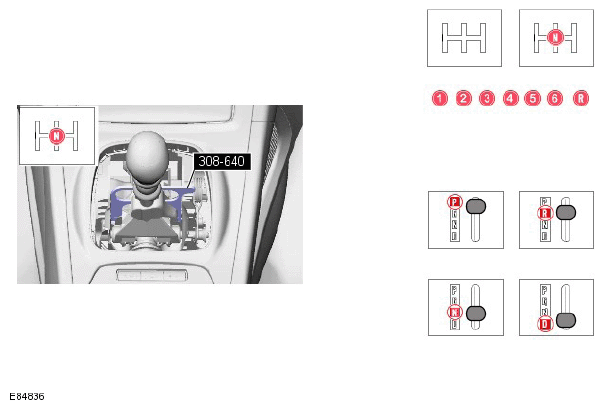

Gearshift lever or selector lever position symbols are used to show which gearshift lever or selector lever position is to be set.

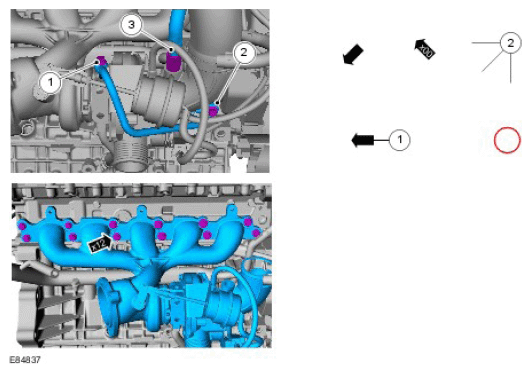

Pointer symbols are used to draw attention to components and give special instructions such as a required sequence or number of components. The number of components is reflected by the value inside the luty arrow. A sequence number is located inside the circle. Numbers inside circles are also used to allocate special information such as tightening torques or chemicals to a particular component.

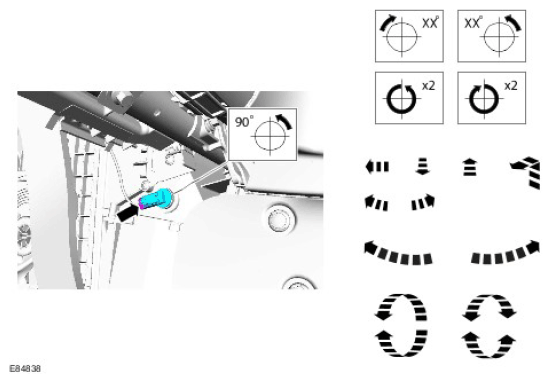

Movement arrows are used to show three dimensional or rotational movements. These movements can include specific values inside the symbol if required.

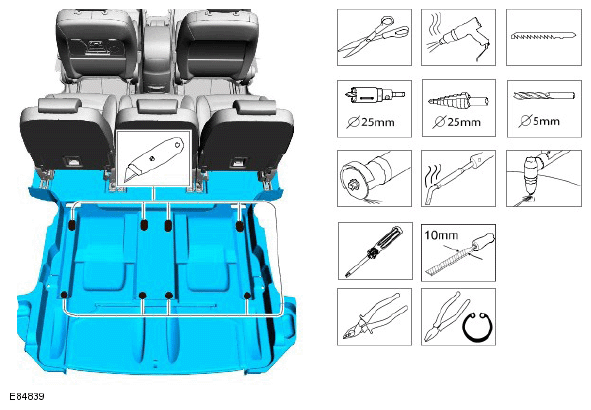

Standard tool symbols recommend the use of certain standard tools. These tools can include dimension values if required.

The following graphic illustrates a set of symbols that are used to provide detailed information on where to apply a material.

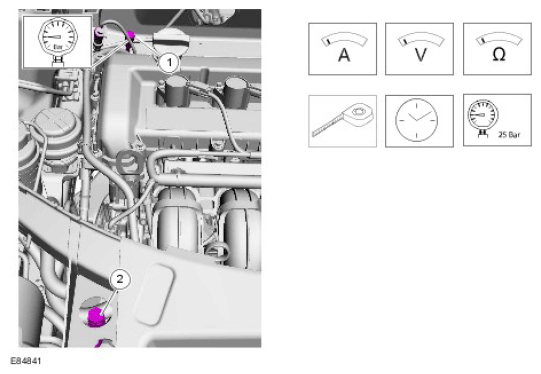

Measurement symbols provide detailed information on where to carry out a specific measurement. These symbols can include specific values if required.
