General Procedures

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
86.40.18 HEADLAMPS - VEHICLE SET - ALIGN BEAMS NAS 0.1
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Make sure to check and adjust the tire pressures to the correct level.
    • Park the vehicle on a horizontally level surface. Gently rock the vehicle to make sure the suspension is settled.
    • Make sure manual levelling switch is set to 0 position.
    • Make sure the vehicles fuel tank is full, if not distribute extra weight evenly over the fuel tank area to represent a full tank of fuel.
  2. Align the headlamp beam setting equipment to one headlamp. Headlamp beam setter
  3. NOTE: The headlamp setting is 1 % below horizontal and parallel.

    Check the headlamp beam alignment.

  4. Open the hood.

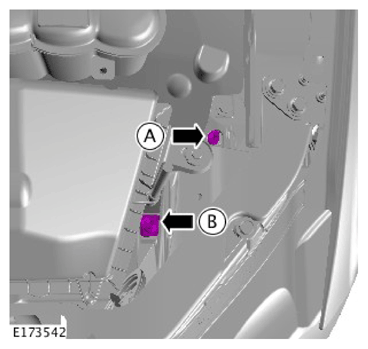

  5. G11311111

    Adjust the headlamps with an Allen Key. A adjusts beam aim vertically. B adjusts beam aim horizontally.

  6. To adjust the second headlamp, repeat the above procedure.
