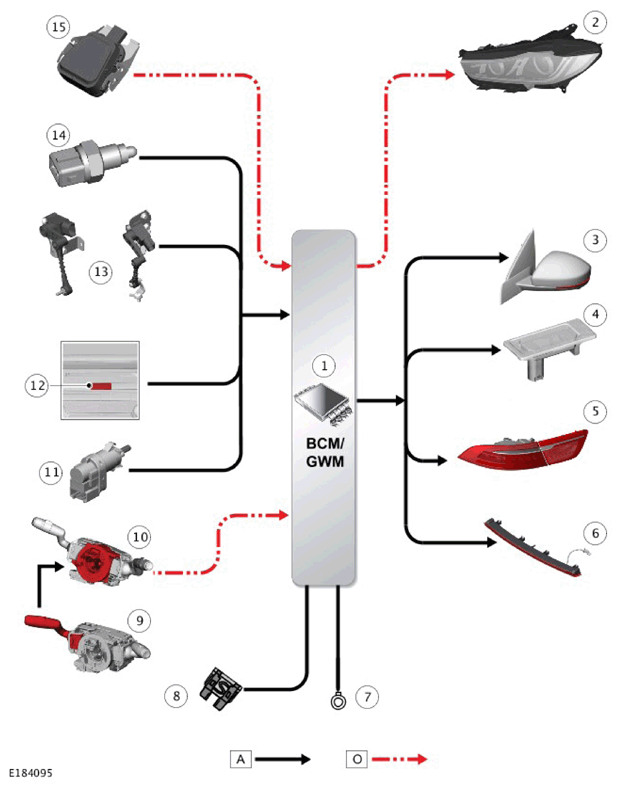

Input/Output Diagram - Sheet 1 Of 2: Notes
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED; O = LOCAL INTERCONNECT NETWORK (LIN) BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 2 | Headlamp assembly - 2 off |
| 3 | Side repeater lamps in door mirror - 2 off |
| 4 | License plate lamp - 2 off |
| 5 | Tail lamp assembly-2 off |
| 6 | High Mounted Stop Lamp (HMSL) |
| 7 | Ground |
| 8 | Power supply |
| 9 | Steering column multifunction switch - left |
| 10 | Steering Wheel Module (SWM) |
| 11 | Brake pedal switch |
| 12 | Hazard warning lamp switch |
| 13 | Height sensors |
| 14 | Reverse lamp switch |
| 15 | Rain/light sensor |
